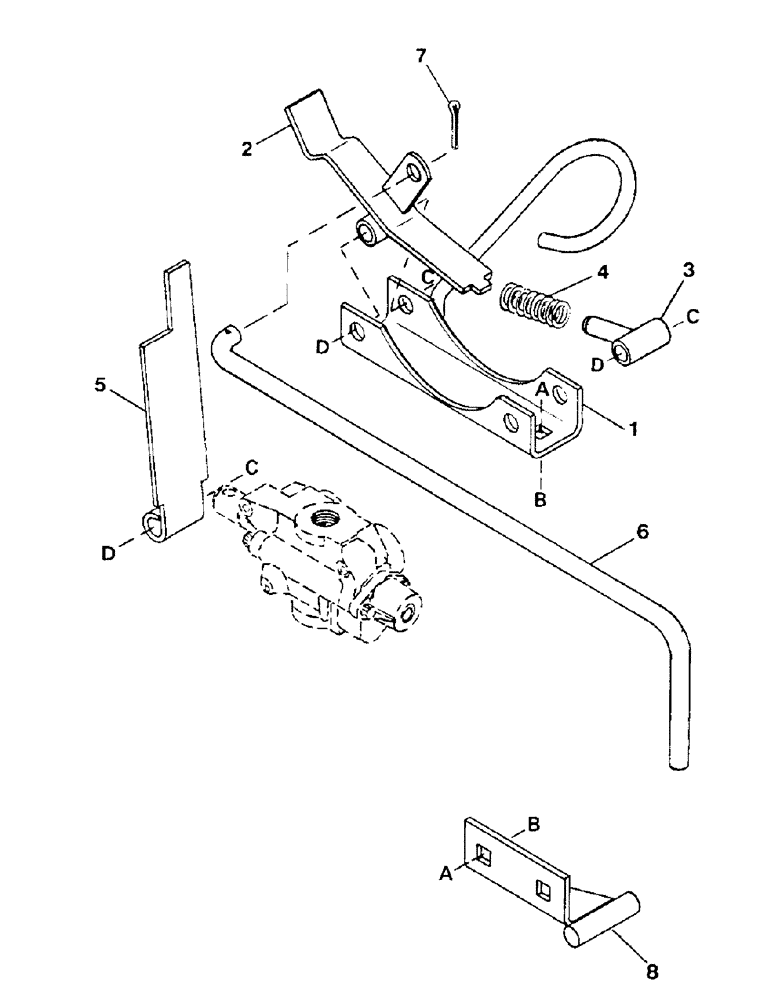

Запчасти Case IH 6000 (9-10) - DECK LATCH GROUP, FIXED OPENING, 21, 25 AND 30 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1336159C1

CHANNEL

- latch

1шт.

a

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

b

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.

2

1336240C1

LATCH

- deck

1шт.

c

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 2-3/4 inch

1шт.

d

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

3

1336242C1

PIVOT

- spring

1шт.

c

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 2-3/4 inch

1шт.

d

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

4

1336241C1

SPRING

- latch

1шт.

5

1336244C1

LEVER

- latch

1шт.

c

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 2-3/4 inch

1шт.

d

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

6

1336243C1

HANDLE

- latch

1шт.

7

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

8

1336245C1

ANGLE

STOP - latch

1шт.

a

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

b

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.
