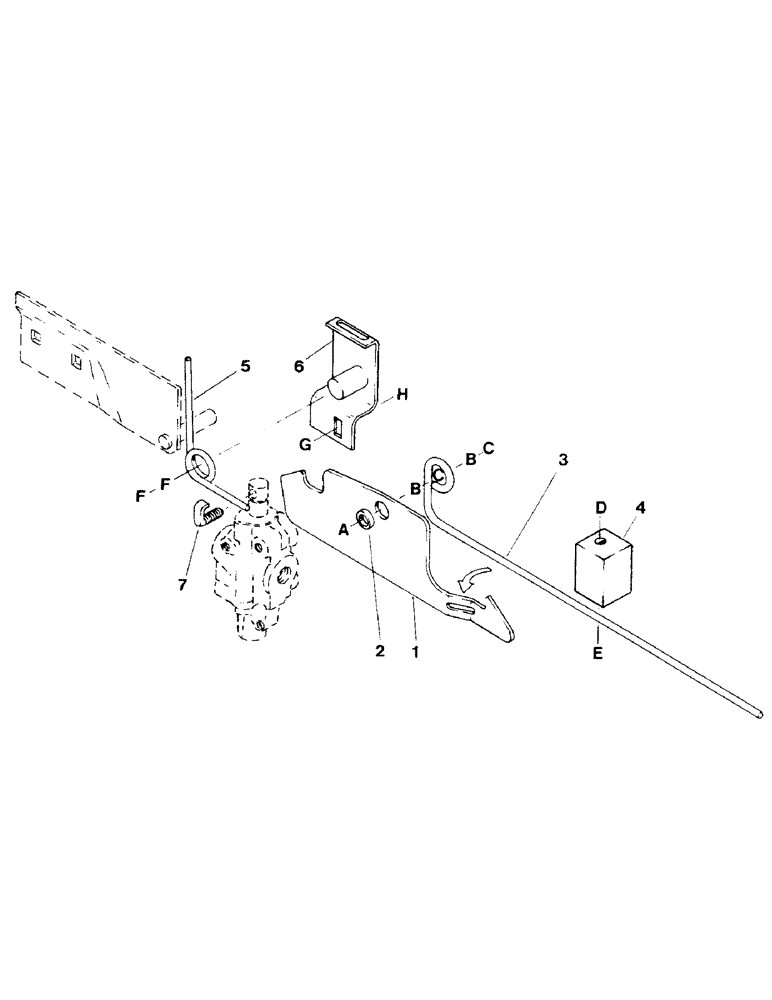

Запчасти Case IH 6000 (9-08) - DECK LATCH GROUP, ADJUSTABLE OPENING, 21, 25 AND 30 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1960361C1

LATCH

- deck

1шт.

2

825945C1

SPACER

1шт.

3

1960362C1

ROD

- spring

1шт.

a

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/4 inch

1шт.

b

495-11053

WASHER,1/2", SAE

- flat, 17/32 inch I.D.

2шт.

c

120238

JAM NUT,Jam, 1/2"-13, G5

- hex, jam 1/2 inch NC

2шт.

4

1960363C1

BLOCK

- rubber

1шт.

d

27453R1

BOLT,Short NK, 3/8"-16 x 3", G5

- round head square neck, 3/8 NC x 3 inch

1шт.

e

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

1шт.

5

1960364C1

SPRING

1шт.

6

1960360C1

PIN

BRACKET WITH PIN

1шт.

f

446266

WASHER,7/8" x 2" x .165"

- flat, 15/16 inch I.D.

2шт.

g

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

7

1960359C1

PIN

- engaging

1шт.
