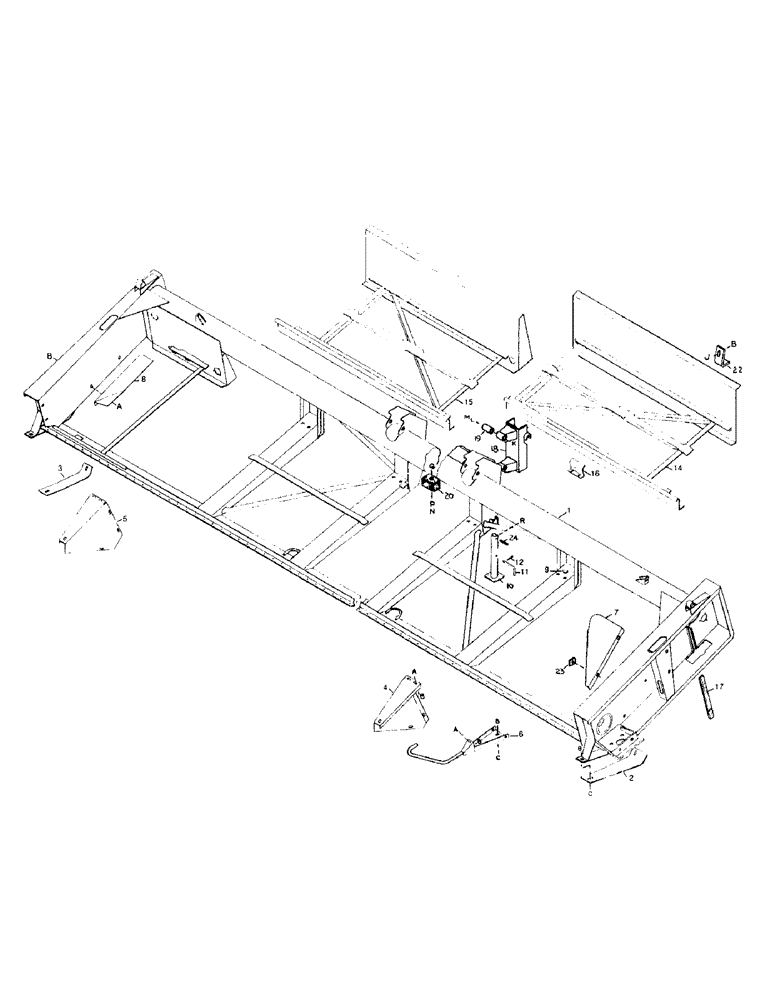

Запчасти Case IH 6000 (9-04) - MAIN FRAME, FIXED OPENING, 21, 25 AND 30 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1336030C1

FRAME

- main, 21' header

1шт.

1

1336031C1

FRAME

- main, 25' header

1шт.

1

1336032C1

FRAME

- main, 30' header

1шт.

2

1336034C1

SHOE

- wear, L/H

1шт.

3

1336035C1

SHOE

- wear, R/H

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

4

1336037C1

DIVIDER

- L/H

1шт.

5

1336038C1

DIVIDER

- R/H

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

8шт.

6

1336039C1

DIVIDER

SHOE - divider

2шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

6шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

7

1336040C1

DEFLECTOR

- L/H

1шт.

8

1336042C1

DEFLECTOR

- R/H

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

9

1336043C1

BUTTON

- wear

8шт.

10

1336044C1

STAND

- frame

1шт.

r

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/2 inch

1шт.

11

825980C1

PIN

- "L"

1шт.

12

591107R1

COTTER PIN

- hair

1шт.

14

1336046C1

PLATFORM

DECK - L/H, 21' header

1шт.

14

1336047C1

PLATFORM

DECK - L/H, 25' header

1шт.

14

1336048C1

PLATFORM

DECK - L/H, 30' header

1шт.

15

1336050C1

PLATFORM

DECK - R/H, 21' header

1шт.

15

1336051C1

PLATFORM

DECK - R/H, 25' header

1шт.

15

1336052C1

PLATFORM

DECK - R/H, 30' header

1шт.

16

1336054C1

GUIDE

HOLD-DOWN - front deck

4шт.

17

1336337C1

SEAL

SPONGE STRIPPING

1шт.

18

1336058C1

SUPPORT

ISOLATOR - linkage, c/w rubber bushings

2шт.

19

1336314C1

BUSHING

- rubber

4шт.

k

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

CAPSCREW - hex head, 5/8 NC x 6-1/2 inch

4шт.

l

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

m

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

20

1336057C1

BLOCK

- rubber (Not required for 30' header)

2шт.

n

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

CAPSCREW - hex head, 3/8 NC x 4 inch

2шт.

p

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

q

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

22

1336056C1

ANGLE

HOLD-DOWN - rear deck

4шт.

j

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

23

1336041C1

WASHER

- square

2шт.

24

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.
