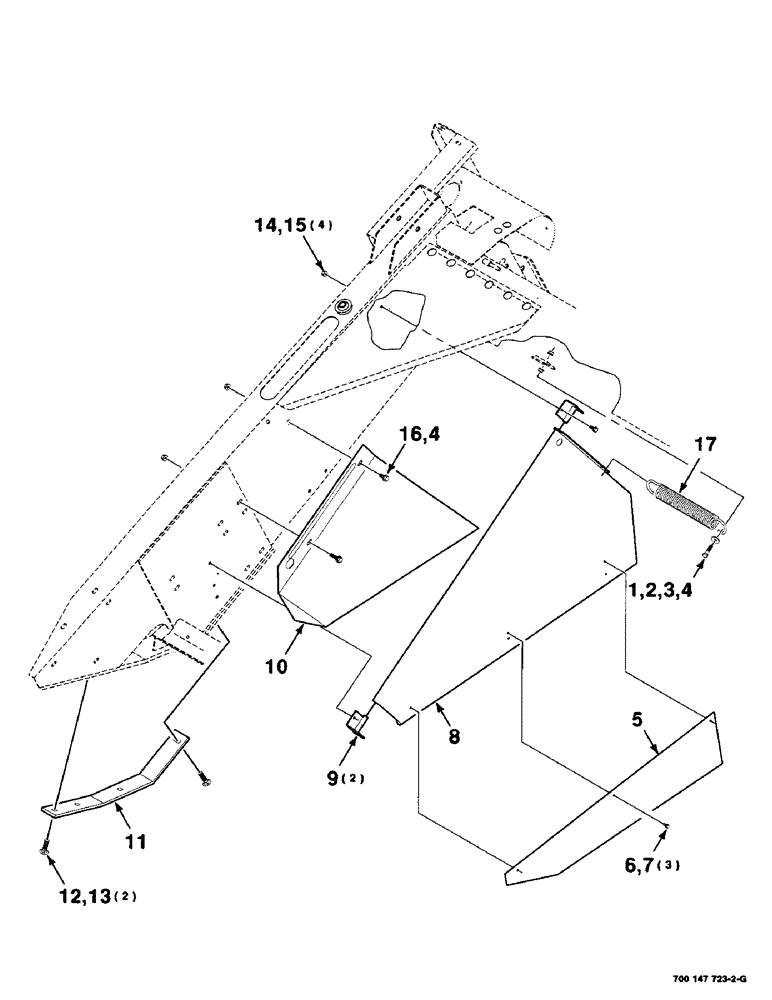

Запчасти Case IH 425 (7-20) - DEFLECTOR SHIELD ASSEMBLY, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

2

495-21044

WASHER,3/8"

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

5

700148895

DEFLECTOR

- lower

1шт.

6

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

7

1703354

NUT

1/4-20 HFTLN GR/G

3шт.

8

700148889

DEFLECTOR

WA - right

1шт.

9

700148892

PIN

WA

2шт.

10

700148883

DEFLECTOR

- right

1шт.

11

700147912

SHOE

- skid

1шт.

12

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

17

700714985

SPRING

- extension

1шт.
