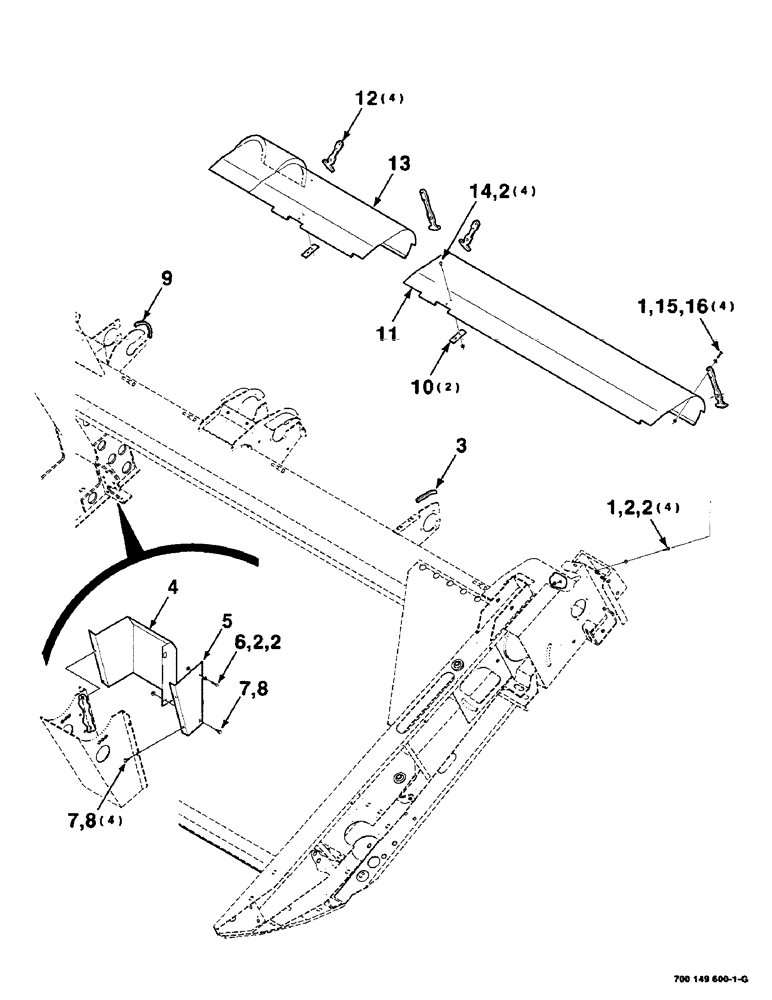

Запчасти Case IH 425 (7-10) - SHIELDS ASSEMBLY, REAR, LEFT, 25 FOOT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

8шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

14шт.

3

700130798

ADHESIVE STRIP

TRIM

1шт.

4

700148872

GUARD

SHIELD - left

1шт.

5

700148860

GUARD

SHIELD - L

1шт.

6

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

9

700105142

GROMMET

TRIM

1шт.

10

700147874

RETAINER

2шт.

11

700149614

GUARD

SHIELD - L

1шт.

12

700717323

LATCH

- rubber

4шт.

13

700147865

SHIELD

WA - Ctr

1шт.

14

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS GR 60M

4шт.

15

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

4шт.

16

1703354

NUT

1/4-20 HFTLN GR/G

4шт.
