Запчасти Case IH 425 (9-34) - WEARPLATE KIT, 30 FOOT, HK60988 WEARPLATE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

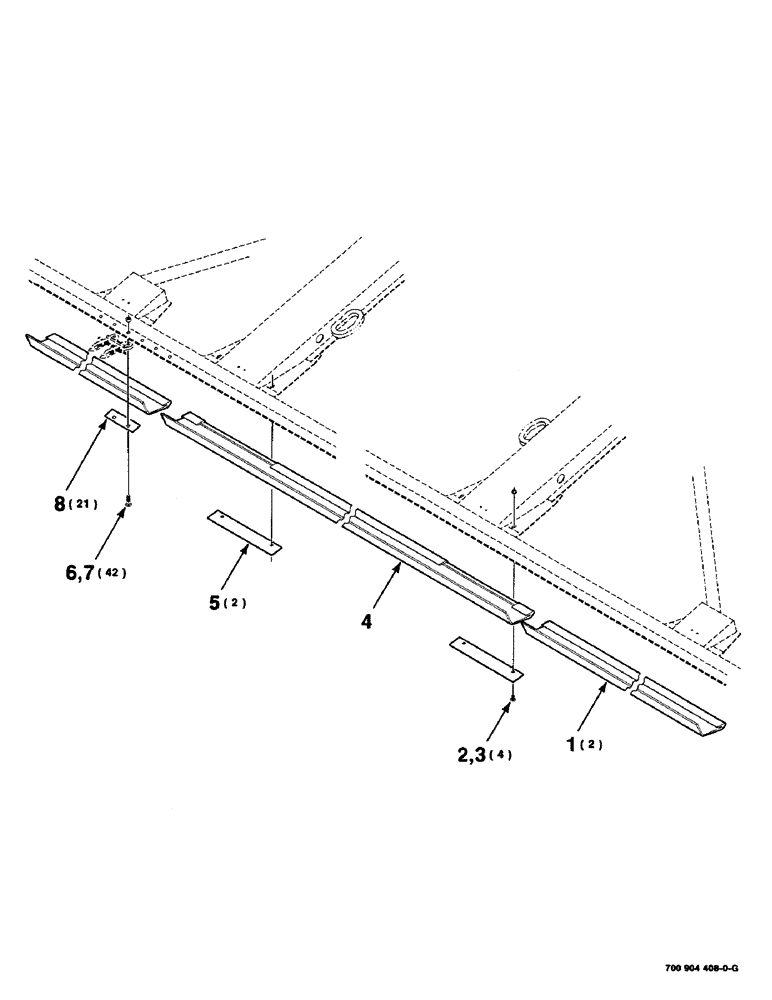

Схема запчастей Case IH 425 - (9-34) - WEARPLATE KIT, 30 FOOT, HK60988 WEARPLATE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS
2
8
6
3
5
1
4
7

Артикул

Название

Примечание

Количество

HK60988

WEARPLATE KIT COMPLETE (30 Foot)

1шт.

1

700718977

WEAR PLATE

WEARPLATE - outer, 30 foot

2шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

4

700718974

WEAR PLATE

WEARPLATE - center

1шт.

5

700149605

RETAINER

2шт.

6

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

42шт.

7

425-107

NUT,7/16"-14, G5

42шт.

8

700149606

RETAINER

21шт.

Выбрано товаров: 9
