(9-30) - WEARPLATE KIT, 21 FOOT, HK60986 WEARPLATE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH 425 (9-30) - WEARPLATE KIT, 21 FOOT, HK60986 WEARPLATE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

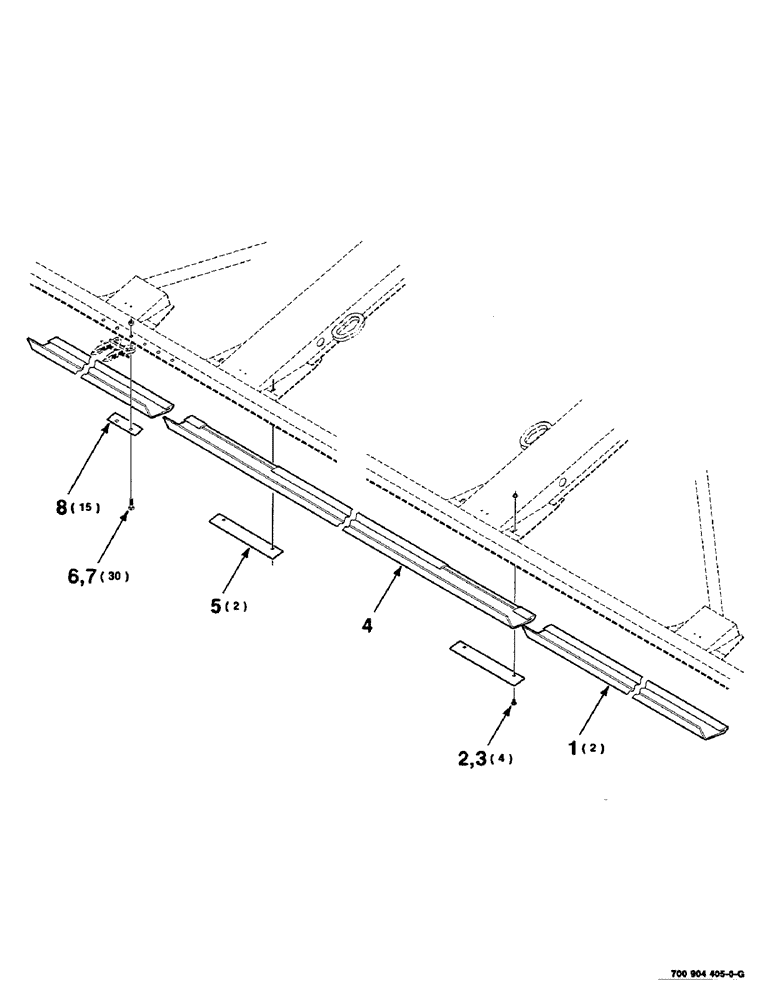

Схема запчастей Case IH 425 - (9-30) - WEARPLATE KIT, 21 FOOT, HK60986 WEARPLATE KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS
8
2
1
3
7
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60986

WEARPLATE KIT COMPLETE (21 Foot)

1шт.

1

700718975

WEAR PLATE

WEARPLATE - outer, 21 foot

2шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

4

700718974

WEAR PLATE

WEARPLATE - center

1шт.

5

700149605

RETAINER

2шт.

6

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

30шт.

7

425-107

NUT,7/16"-14, G5

30шт.

8

700149606

RETAINER

15шт.
