(9-28) - HEAVY DUTY DRIVE KIT, GREEN CROP, HK60989 HEAVY DUTY DRIVE KIT COMPLETE

Запчасти Case IH 425 (9-28) - HEAVY DUTY DRIVE KIT, GREEN CROP, HK60989 HEAVY DUTY DRIVE KIT COMPLETE (58) - ATTACHMENTS/HEADERS

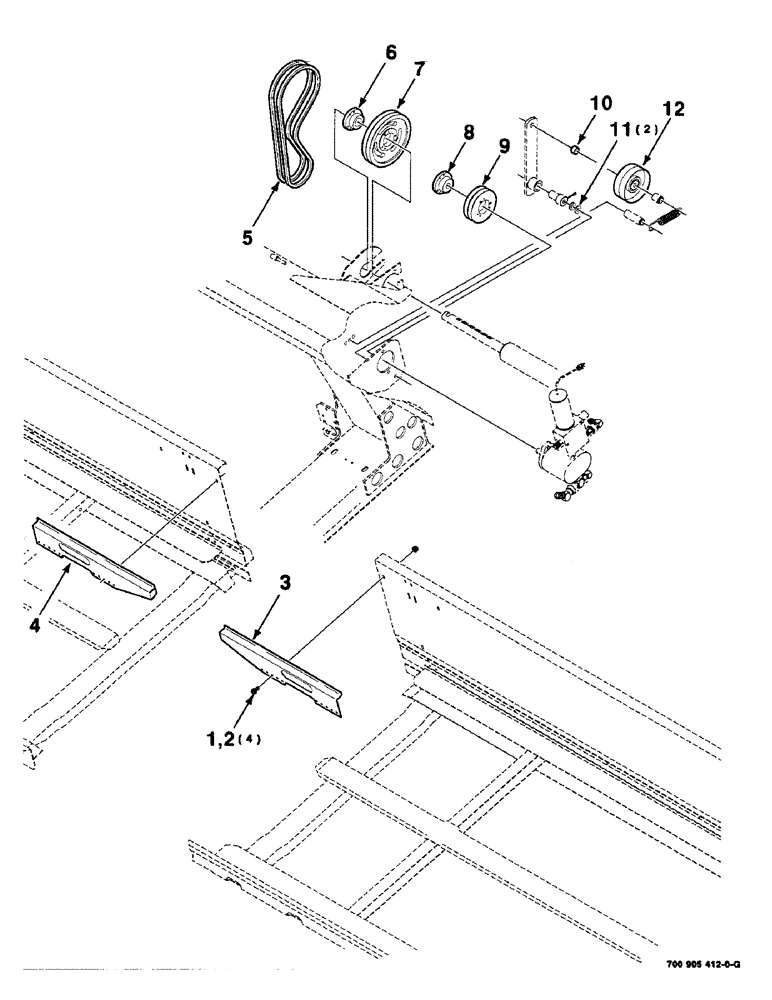

Схема запчастей Case IH 425 - (9-28) - HEAVY DUTY DRIVE KIT, GREEN CROP, HK60989 HEAVY DUTY DRIVE KIT COMPLETE (58) - ATTACHMENTS/HEADERS
8
2
1
6
12
9
10
4
5
11
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60989

ATTACHMENT

HEAVY DUTY DRIVE KIT COMPLETE

1шт.

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

3

700147675

STOP

- L

1шт.

4

700149599

STOP

- R

1шт.

5

700718980

BELT

V-BELT , matched set of 2

1шт.

6

7747280

ASSEMBLY

BUSHING - tapered

1шт.

7

700149603

SHEAVE

2B

1шт.

8

849778

BUSHING

- tapered

1шт.

9

700149604

SHEAVE

2B

1шт.

10

6484257

SPACER

TUBE

1шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

12

700718978

FRONT IDLER

IDLER - flat

1шт.
