(9-26) - VERTICAL END SICKLE MOUNTING KIT, HK60948 VERTICAL END SICKLE MOUNTING KIT COMPLETE

Запчасти Case IH 425 (9-26) - VERTICAL END SICKLE MOUNTING KIT, HK60948 VERTICAL END SICKLE MOUNTING KIT COMPLETE (58) - ATTACHMENTS/HEADERS

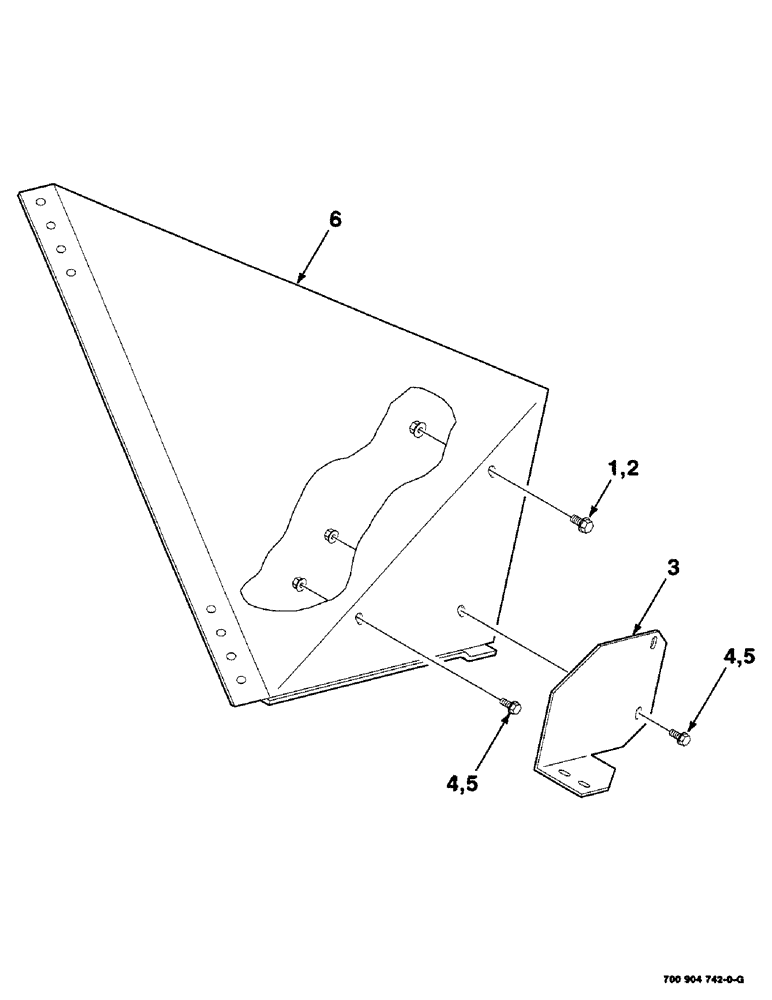

Схема запчастей Case IH 425 - (9-26) - VERTICAL END SICKLE MOUNTING KIT, HK60948 VERTICAL END SICKLE MOUNTING KIT COMPLETE (58) - ATTACHMENTS/HEADERS
6
1
5
3
4
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60948

KNIFE

VERTICAL END SICKLE MOUNTING KIT

1шт.

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

3

700148959

ANGLE

- flow control

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

6

700148952

SUPPORT

WA - right

1шт.
