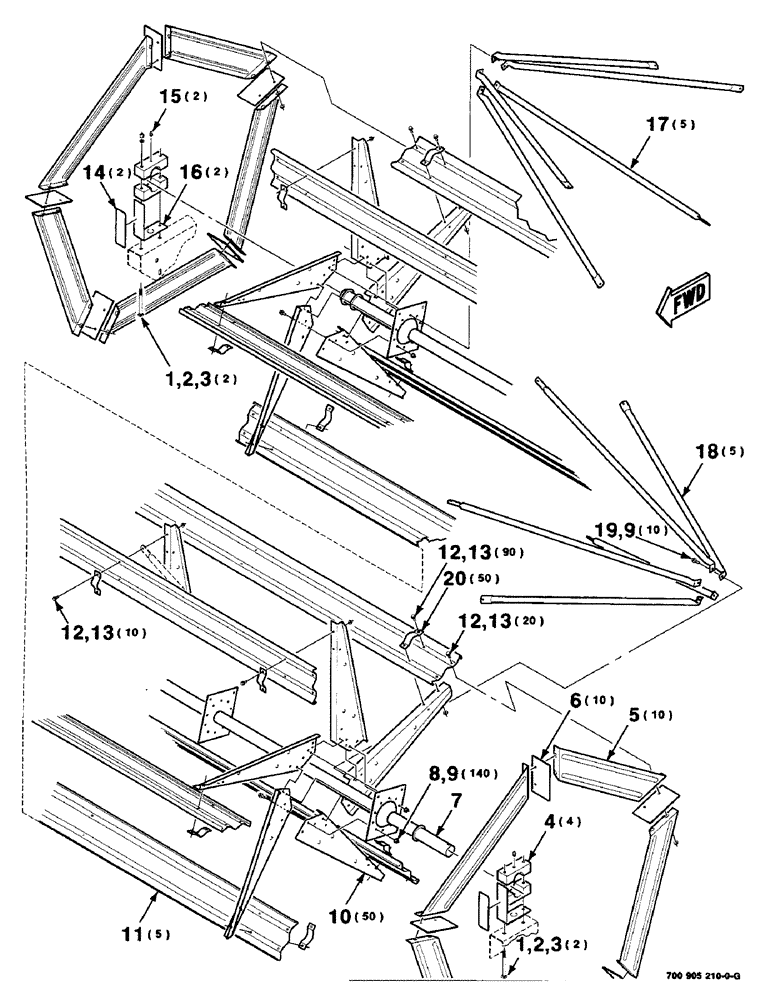

Запчасти Case IH 425 (9-24) - REEL BAT KIT, HEAVY DUTY, 30, HK60961 30 REEL BAT KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

HK60961

REEL BAT KIT COMPLETE - 30 foot

1шт.

1

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 RHSNB

4шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

4

700707236

BEARING HALF

BEARING - wood

4шт.

5

700118409

SHIELD

- end, reel

10шт.

6

700118408

FLAP

WEBBING

10шт.

7

700149596

TUBE,9137 mm Length

WA - reel

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

140шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

150шт.

10

700116314

ARM

- reel

50шт.

11

700711650

BAT

- reel (Heavy Duty)

5шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

120шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

120шт.

14

700717403

REFLECTOR

- yellow

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 NPTF ZERK

2шт.

16

700147899

ANGLE

- decal

2шт.

17

700116315

ARM

TUBE - reel arm, right

5шт.

18

700116362

REINFORCEMENT,25.4 mm OD, 1058.5 mm Length

TUBE - reel arm, left

5шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

10шт.

20

6825418

CLIP

50шт.
