Запчасти Case IH 425 (9-16) - PICKUP REEL KIT, 30, UNIVERSAL, HK60982 30 PICKUP REEL COMPLETE, INCLUDES PAGES 9-16 THRU 9-18 (58) - ATTACHMENTS/HEADERS

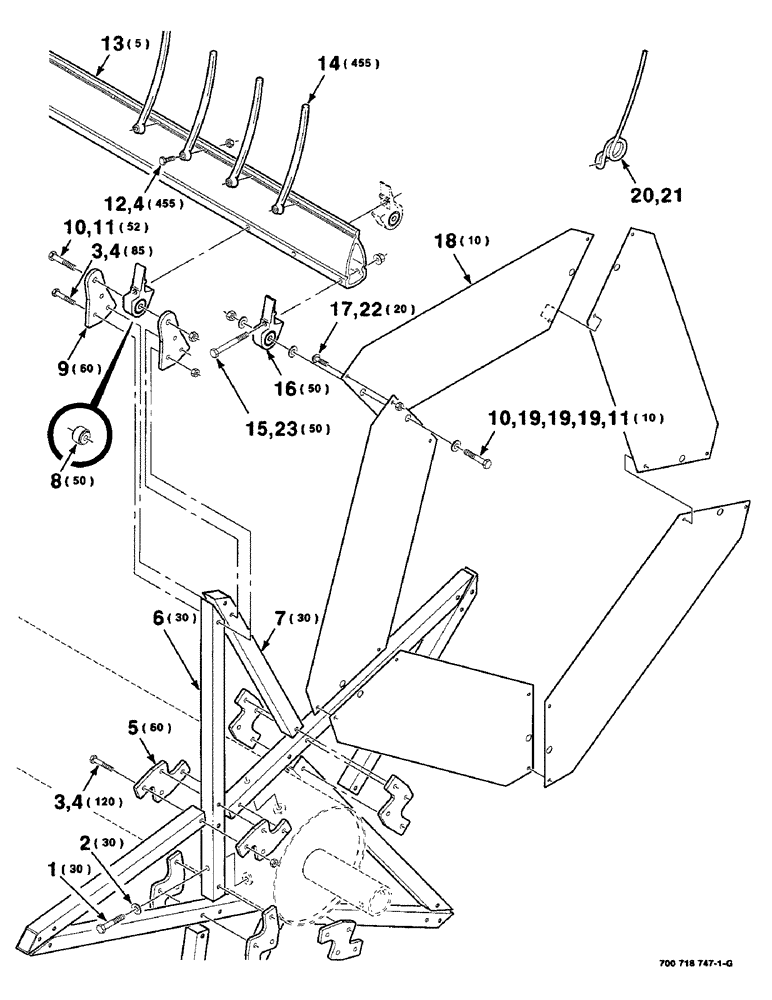

Схема запчастей Case IH 425 - (9-16) - PICKUP REEL KIT, 30, UNIVERSAL, HK60982 30 PICKUP REEL COMPLETE, INCLUDES PAGES 9-16 THRU 9-18 (58) - ATTACHMENTS/HEADERS
2
14
8
3
11
10
1
9
18
17
20
13
16
4
21
12
19
11
19
6
3
4
7
19
23
4
10
22
15
5

Артикул

Название

Примечание

Количество

HK60982

PICKUP REEL KIT COMPLETE - 21 Ft

1шт.

1

700708893

SCREW

5/16-18 X 1-3/4 BOLT - lock

30шт.

2

700708890

WASHER

5/16 WASHER - special

30шт.

3

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

205шт.

4

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

660шт.

5

700708865

COVER PLATE

PLATE - inner

60шт.

6

700708870

ARM

- bat

30шт.

7

700708871

ARM

BRACE - arm, bat

30шт.

8

700713276

BALL BEARING

BEARING

50шт.

9

700708863

COVER PLATE

PLATE - tip

60шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

62шт.

11

7704075

NUT

5/16-18 HHSN

62шт.

12

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

455шт.

13

700716866

BAT

(30 Foot)

5шт.

14

700714195

TINE

- plastic

455шт.

15

703769

SCREW

5/16-18 X 2 3/4 C

50шт.

16

700716861

HOLDER

- bearing (Includes item 8)

50шт.

17

52397

SCREW

1/4-20 X 3/8 CRTHMS

20шт.

18

700716867

SHIELD

- end

10шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

20

700712427

TINE

- wire (Optional-Single)

1шт.

21

700712428

TINE

- wire (Optional-Box of 300)

1шт.

22

52396

NUT

1/4-20 NUT - keps

20шт.

23

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

50шт.

Выбрано товаров: 24
