Запчасти Case IH 425 (9-14) - PICKUP REEL MOUNTING AND CAM ASSEMBLY, 25 FOOT (58) - ATTACHMENTS/HEADERS

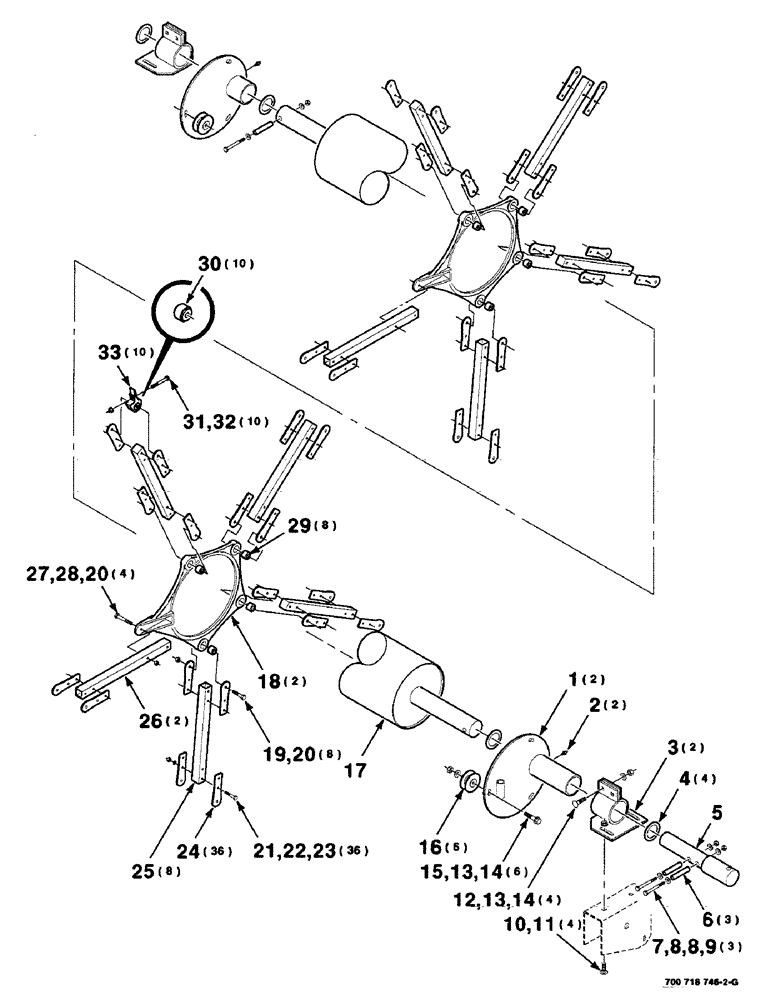

Схема запчастей Case IH 425 - (9-14) - PICKUP REEL MOUNTING AND CAM ASSEMBLY, 25 FOOT (58) - ATTACHMENTS/HEADERS
8
23
10
4
30
3
20
13
19
8
1
32
6
31
17
21
7
13
16
12
28
14
14
2
27
29
22
9
26
25
20
18
15
11
33
24
5

Артикул

Название

Примечание

Количество

1

700708886

SHAFT

PLATE - control

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

2шт.

3

700719185

CLAMP

- mounting, reel

2шт.

4

700708889

WASHER

- shaft

4шт.

5

700719186

SHAFT

- stub

1шт.

6

700716876

PIN

1/2 X 2 SPRING PIN

5шт.

7

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

3шт.

8

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

9

230-4214

LOCK NUT,1/4"-20, GA

1/4-20 HCLN GR/B

3шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

14

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

10шт.

15

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

6шт.

16

700708888

ROLLER

- control plate

6шт.

17

700719182

SHAFT

TUBE - reel, 25 foot

1шт.

18

700708869

SUPPORT

RING - track

2шт.

19

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

20

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

12шт.

21

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

36шт.

22

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1/4 EXTERNAL TOOTH LOCK WASHER

36шт.

23

425-104

NUT,1/4"-20, Cl 5

36шт.

24

700708864

COVER PLATE

PLATE - end

36шт.

25

700708873

ARM

- control, regular

8шт.

26

700708872

ARM

- control, fixed

2шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

28

700708890

WASHER

SPECIAL WASHER

4шт.

29

700718566

BEARING, BALL

BEARING - ball

8шт.

30

700713276

BALL BEARING

BUSHING - bearing

10шт.

31

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

10шт.

32

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

33

700719184

HOLDER

- bearing (Includes item 30)

10шт.

Выбрано товаров: 33
