Запчасти Case IH 425 (9-12) - PICKUP REEL KI, 25, UNIVERSAL, HK60981 25 PICKUP REEL COMPLETE, INCLUDES PAGES 9-12 THRU 9-14 (58) - ATTACHMENTS/HEADERS

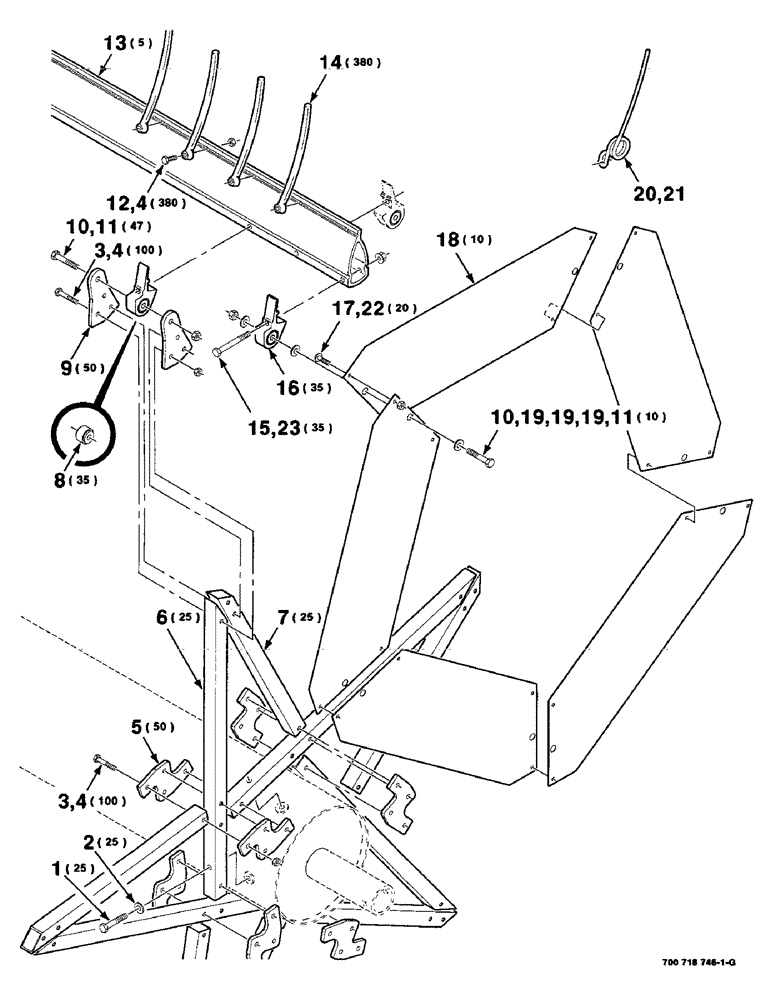

Схема запчастей Case IH 425 - (9-12) - PICKUP REEL KI, 25, UNIVERSAL, HK60981 25 PICKUP REEL COMPLETE, INCLUDES PAGES 9-12 THRU 9-14 (58) - ATTACHMENTS/HEADERS
23
13
8
11
22
19
4
2
12
3
11
6
4
10
9
20
19
1
4
15
7
19
3
21
17
18
16
14
5
10

Артикул

Название

Примечание

Количество

HK60981

PICKUP REEL KIT COMPLETE - 21 Ft

1шт.

1

700708893

SCREW

5/16-18 X 1-3/4 BOLT - lock

25шт.

2

700708890

WASHER

5/16 WASHER - special

25шт.

3

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

200шт.

4

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

580шт.

5

700708865

COVER PLATE

PLATE - inner

50шт.

6

700708870

ARM

- bat

25шт.

7

700708871

ARM

BRACE - arm, bat

25шт.

8

700713276

BALL BEARING

BEARING

35шт.

9

700708863

COVER PLATE

PLATE - tip

50шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

57шт.

11

7704075

NUT

5/16-18 HHSN

57шт.

12

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

380шт.

13

700716865

BAT

(25 Foot)

5шт.

14

700714195

TINE

- plastic

380шт.

15

703769

SCREW

5/16-18 X 2 3/4 C

35шт.

16

700716861

HOLDER

- bearing (Includes item 8)

35шт.

17

52397

SCREW

1/4-20 X 3/8 CRTHMS

20шт.

18

700716867

SHIELD

- end

10шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

20

700712427

TINE

- wire (Optional-Single)

1шт.

21

700712428

TINE

- wire (Optional-Box of 300)

1шт.

22

52396

NUT

1/4-20 NUT - keps

20шт.

23

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

35шт.

Выбрано товаров: 24
