Запчасти Case IH 425 (9-10) - PICKUP REEL MOUNTING AND CAM ASSEMBLY, 21 FOOT (58) - ATTACHMENTS/HEADERS

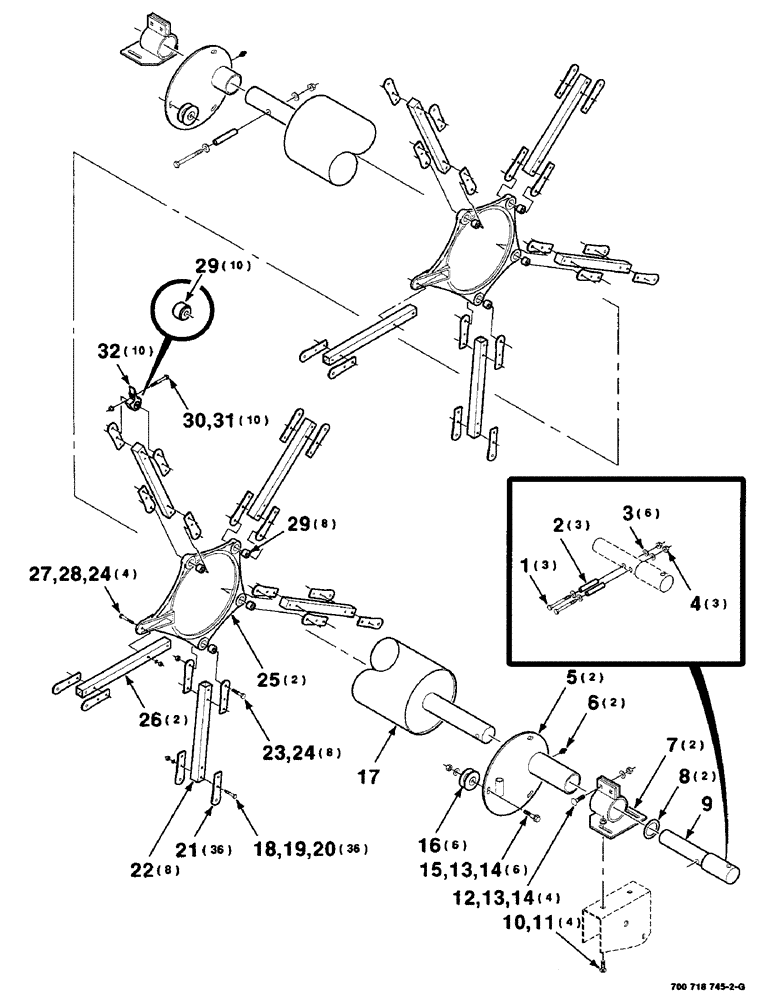

Схема запчастей Case IH 425 - (9-10) - PICKUP REEL MOUNTING AND CAM ASSEMBLY, 21 FOOT (58) - ATTACHMENTS/HEADERS
7
5
3
9
6
4
15
10
13
20
29
21
17
31
26
2
32
30
24
27
23
1
11
16
18
8
14
22
28
24
29
14
12
19
13
25

Артикул

Название

Примечание

Количество

1

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

3шт.

2

700716876

PIN

1/2 X 2 SPRING PIN

3шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

4

1703354

NUT

1/4-20 HFTLN GR/G

3шт.

5

700708886

SHAFT

PLATE - control

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-28 ZERK

2шт.

7

700719185

CLAMP

- mounting, reel

2шт.

8

700708889

WASHER

- shaft

2шт.

9

700719186

SHAFT

- stub

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

14

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

10шт.

15

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

6шт.

16

700708888

ROLLER

- control plate

6шт.

17

700719181

TUBE

- reel, 21 foot

1шт.

18

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

36шт.

19

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1/4 EXTERNAL TOOTH LOCK WASHER

36шт.

20

425-104

NUT,1/4"-20, Cl 5

36шт.

21

700708864

COVER PLATE

PLATE - end

36шт.

22

700708873

ARM

- control, regular

8шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

24

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

12шт.

25

700708869

SUPPORT

RING - track

2шт.

26

700708872

ARM

- control, fixed

2шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

28

700708890

WASHER

SPECIAL WASHER

4шт.

29

700713276

BALL BEARING

BUSHING - bearing

18шт.

30

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

10шт.

31

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

32

700719184

HOLDER

HOLSER - bearing (Includes item 29)

10шт.

Выбрано товаров: 32
