Запчасти Case IH 425 (7-32) - STRUT AND GAUGE WHEEL ASSEMBLIES (58) - ATTACHMENTS/HEADERS

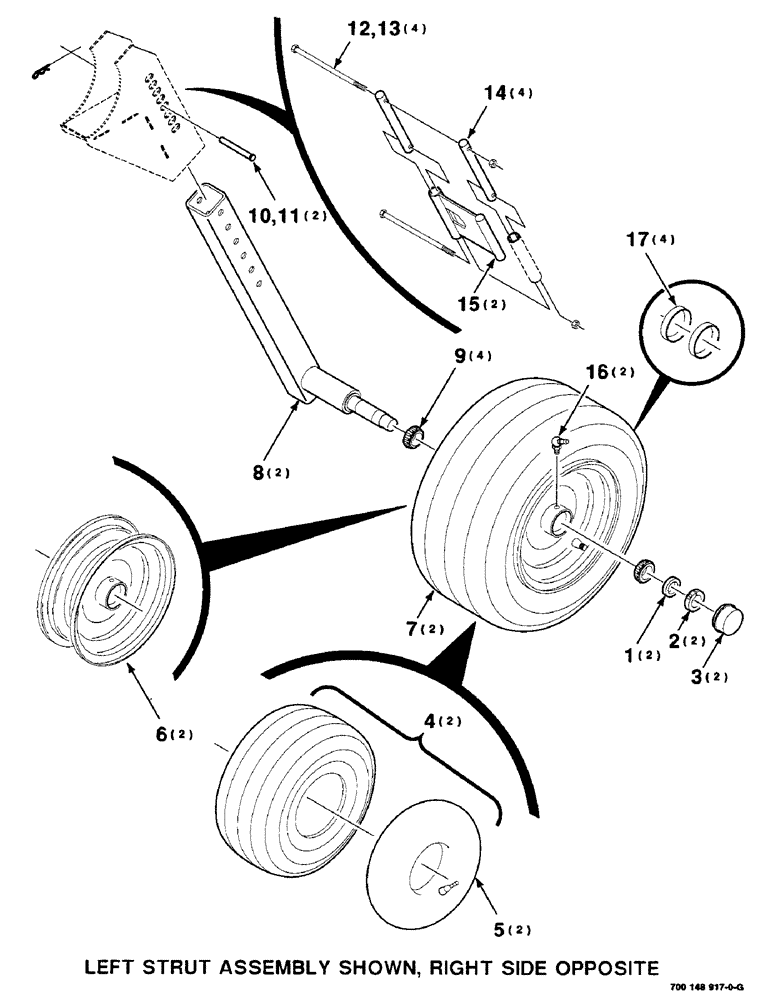

Схема запчастей Case IH 425 - (7-32) - STRUT AND GAUGE WHEEL ASSEMBLIES (58) - ATTACHMENTS/HEADERS
7
1
5
6
15
11
13
12
9
3
16
14
2
8
17
10
4

Артикул

Название

Примечание

Количество

1

700148921

SPACER

2шт.

2

700706600

COLLAR

- clamp, threaded

2шт.

3

700708708

CAP

- grease

2шт.

4

700718995

TYRE/TIRE

TIRE AND TUBE ASSEMBLY (Includes item 5)

2шт.

5

700719261

TUBE

2шт.

6

700719259

WHEEL

ASSEMBLY (Includes bearing cups)

2шт.

7

700717028

WHEEL ASSY.

TIRE AND WHEEL ASSEMBLY (Includes items 4, 5, 6, 16 and 17)

2шт.

8

700148918

STRUT

WA

2шт.

9

713818

ROLLER BEARING,34.938 mm ID x 65.113 mm OD x 18.796 mm

CONE

4шт.

10

763870

CLEVIS PIN

5/8 X 4 CLEVIS PIN

2шт.

11

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

12

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3/8-16 X 8 B

4шт.

13

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

14

700147882

ROD

4шт.

15

700147878

TUBE

WA

2шт.

16

219-10

LUBE NIPPLE,1/4" - 28 NPTF

ZERK 1/4-28

2шт.

17

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

4шт.

Выбрано товаров: 17
