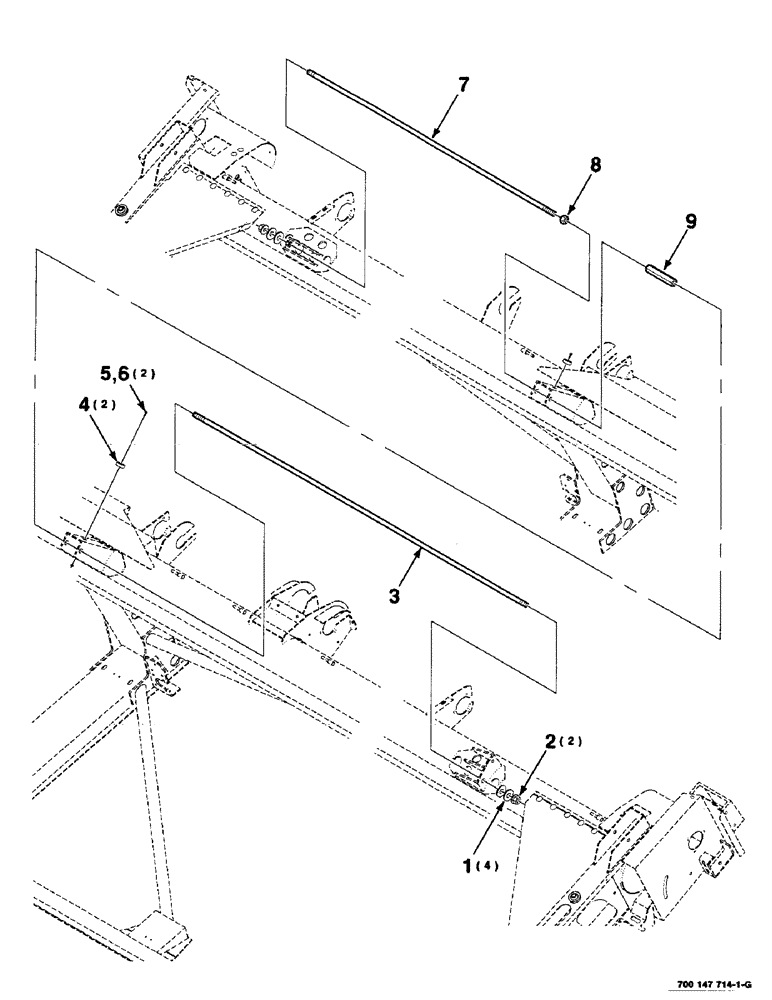

Запчасти Case IH 425 (7-04) - TRUSS ROD ASSEMBLY, 30 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

4шт.

2

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

3

700147871

ROD

- L

1шт.

4

700708648

BUMPER

- rubber

2шт.

5

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

6

700705521

RIVET

#12-24 LOCKNUT - special

2шт.

7

700147872

ROD

- R

1шт.

8

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

9

700130772

TURNBUCKLE

1шт.
