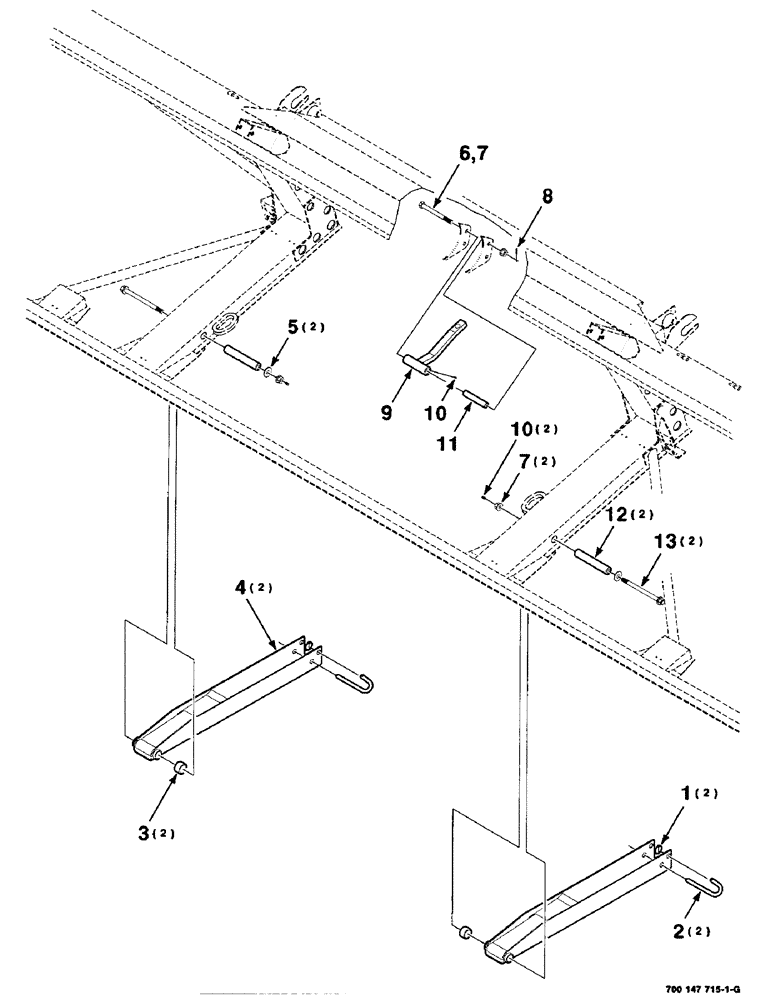

Запчасти Case IH 425 (7-02) - HEADER LIFT MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700718066

PIN

- lynch

2шт.

2

700148906

PIN

2шт.

3

6851364

BUSHING

HUB

2шт.

4

700148946

CHANNEL

WA

2шт.

5

495-21081

WASHER,3/4"

2шт.

6

700147889

BOLT,3/4" - 10 x 8", Gr 5

SCREW - special

1шт.

7

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

3шт.

8

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

9

700147883

ARM

WA

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

11

700147887

BUSHING

1шт.

12

700147911

TUBE,0.82" ID, 38.1 mm OD, 220 mm Length

2шт.

13

700147910

PIN

ASSEMBLY

2шт.
