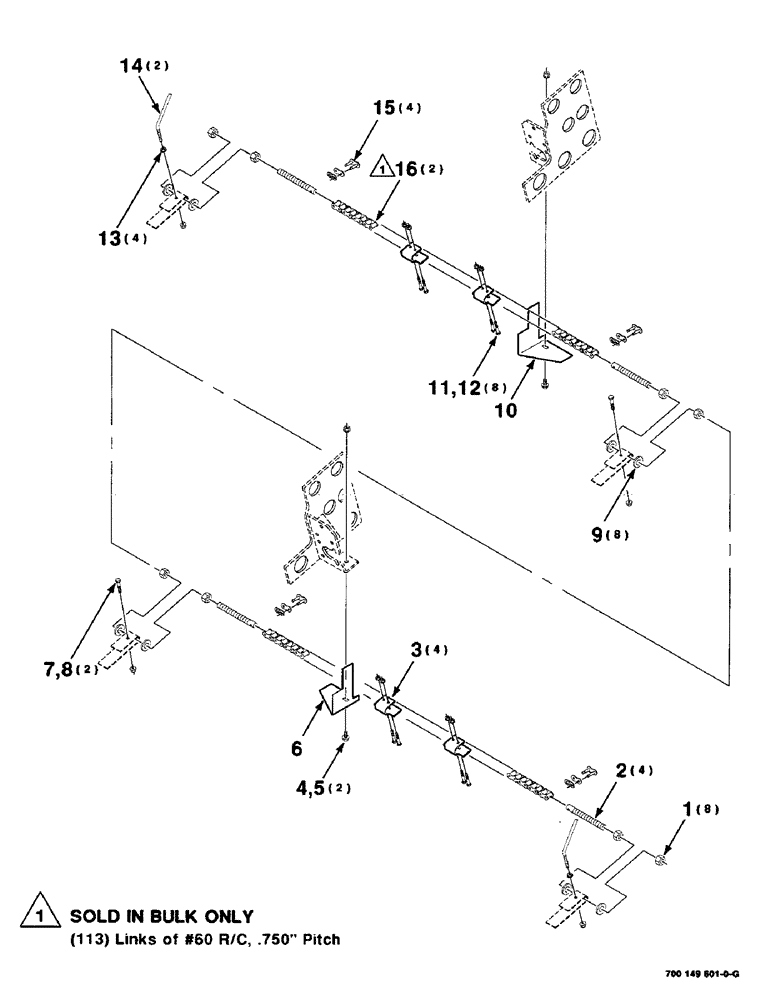

Запчасти Case IH 425 (6-24) - DRAPER SHIFT ASSEMBLY, 25 AND 30 FOOT (58) - ATTACHMENTS/HEADERS

1

425-1010

NUT,5/8"-11, G5

8шт.

2

700147947

ROD

4шт.

3

700147948

STOP

- chain

4шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

6

700147914

SHIELD

- left

1шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

10

700147915

SHIELD

- right

1шт.

11

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

12

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

14

700147917

ROD

- retainer

2шт.

15

241-1316

LINK,19.05mm Pitch

CONNECTOR - #60

4шт.

16

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot Bulk)

2шт.
