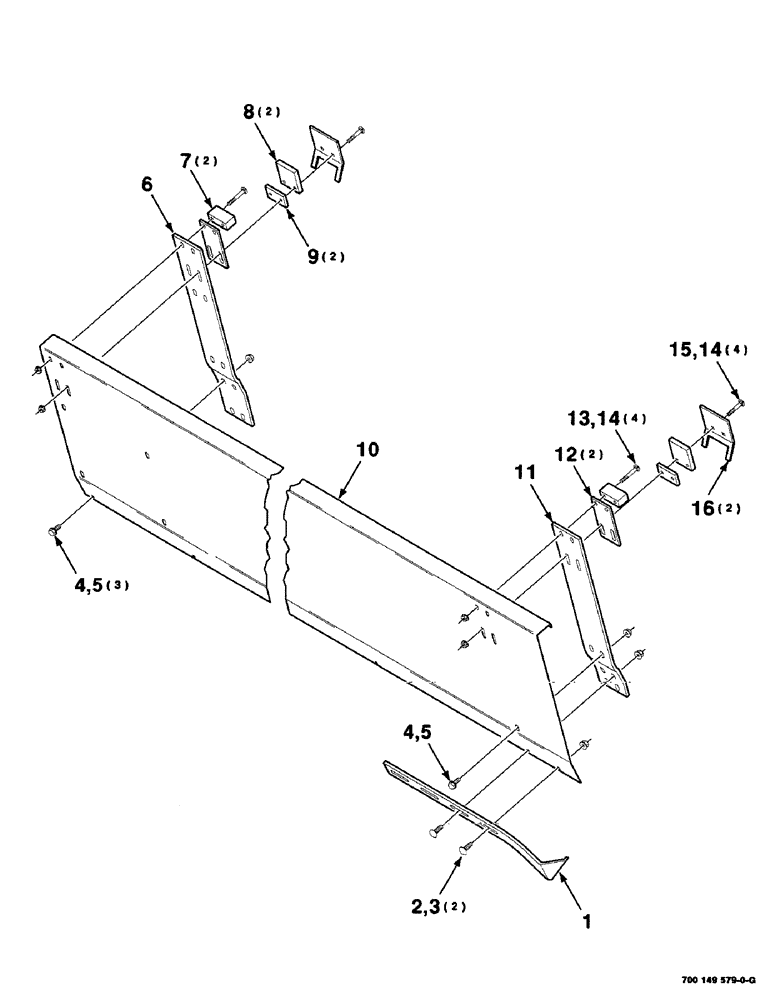

Запчасти Case IH 425 (6-18) - PANEL ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700147945

STRAP

- pusher

1шт.

2

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

6

700147936

STRAP

- inner

1шт.

7

700129136

BLOCK

- nylon

2шт.

8

700115400

BAR PLATE

BEARING

2шт.

9

700147938

PLATE

2шт.

10

700149580

PANEL

- back, right (21 Foot)

1шт.

700149635

PANEL

- back, right (25 Foot)

1шт.

700147944

PANEL

- back, right (30 Foot)

1шт.

11

700147935

STRAP

- outer

1шт.

12

700717294

PAD

- slide

2шт.

13

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

1/4-20 X 2 RHSNB

4шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

15

7770191

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 3/4", Gr 5

1/4-20 X 1-3/4 RHSNB

4шт.

16

700147937

ANGLE

2шт.
