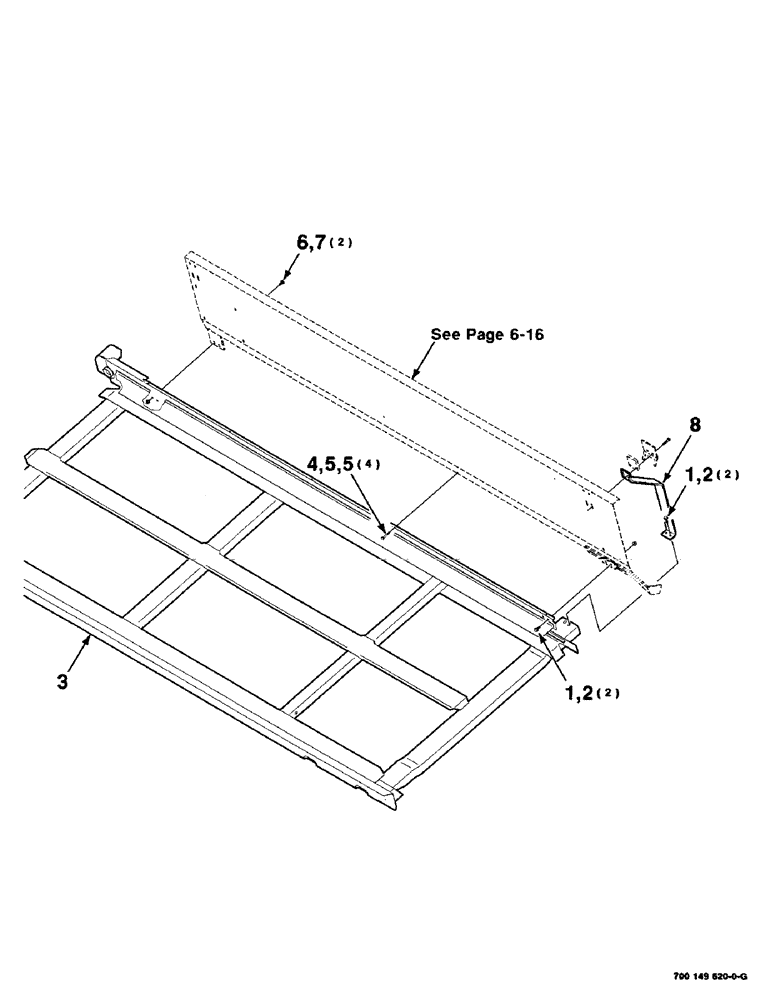

Запчасти Case IH 425 (6-08) - DECK ASSEMBLY, LEFT, 25 FOOT (58) - ATTACHMENTS/HEADERS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

3

700149620

FRAME

WA - draper, left (25 Foot)

1шт.

4

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

4шт.

5

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

8

700147946

SUPPORT

- panel

1шт.
