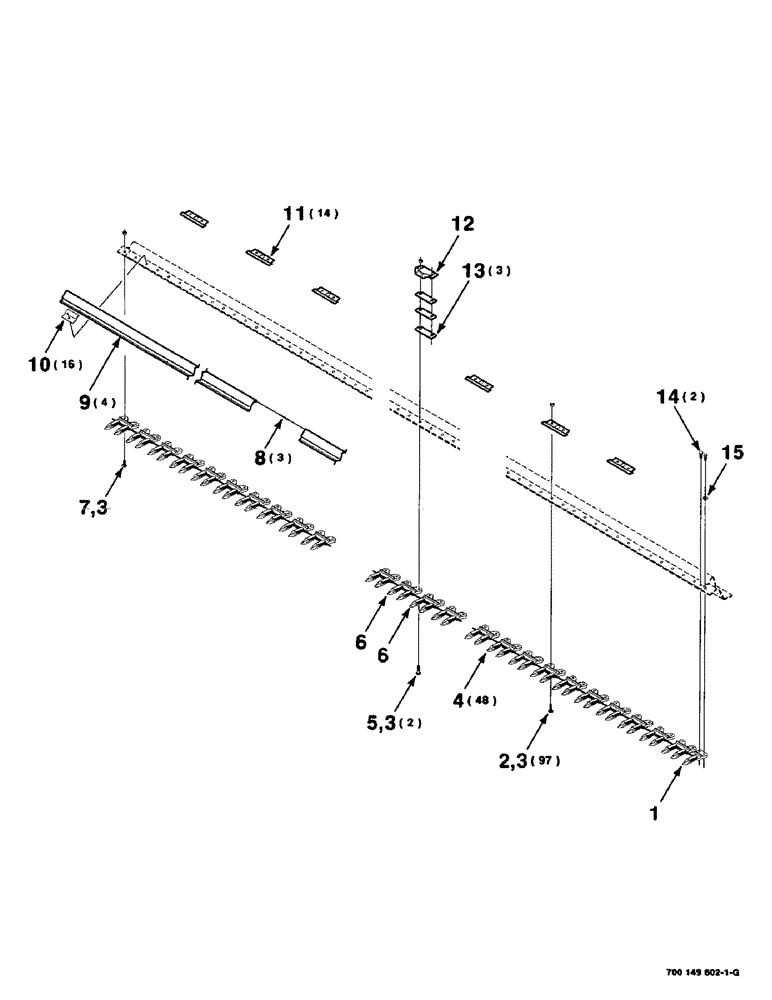

Запчасти Case IH 425 (5-18) - GUARD ASSEMBLY, 25 FOOT (58) - ATTACHMENTS/HEADERS

1

NLS

NO LONGER SERVICED

- half, CLAMP - harness, closed, 9/16 inch ID

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

97шт.

3

425-107

NUT,7/16"-14, G5

100шт.

4

700700845

GUARD

GUARD

48шт.

5

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

2шт.

6

748160

GUARD

- double

2шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

1шт.

8

6617922

PIN

- hinge

3шт.

9

700149618

SHIELD

GUARD - draper, 25 foot

4шт.

10

700148847

CLAMP

HOLDDOWN

16шт.

11

700134757

PLATE

HOLDDOWN

14шт.

12

6832703

CLAMP BRACKET

HOLDDOWN

1шт.

13

6821268

SHIM

3шт.

14

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

15

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

1шт.
