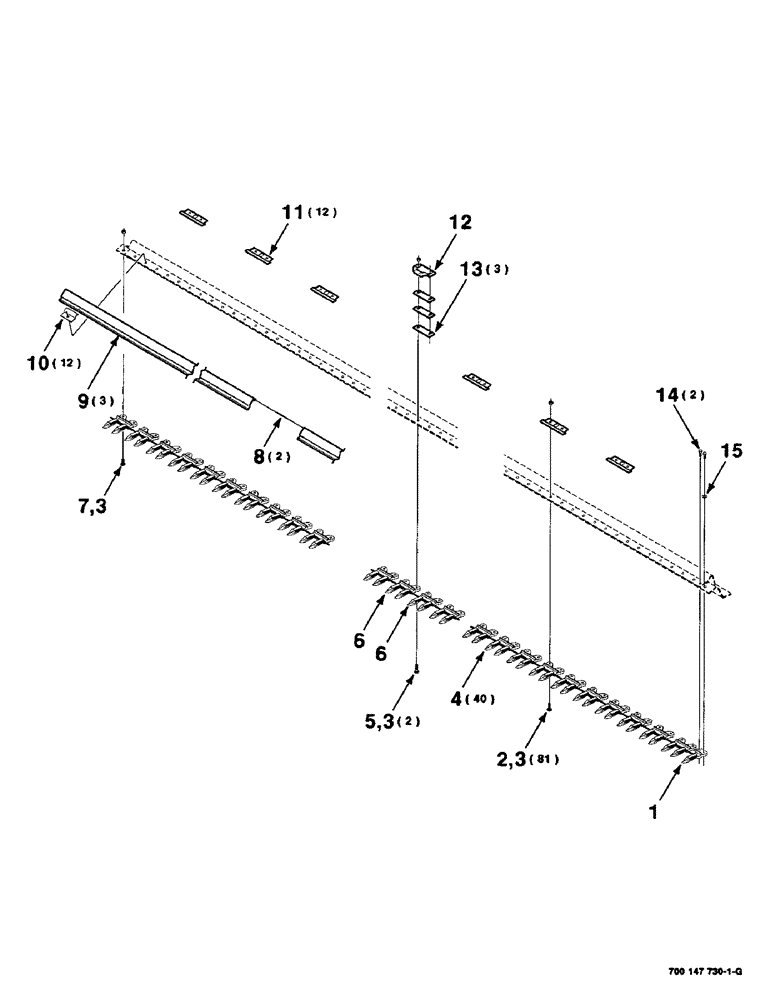

Запчасти Case IH 425 (5-16) - GUARD ASSEMBLY, 21 FOOT (58) - ATTACHMENTS/HEADERS

1

49395

GUARD

- half

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

81шт.

3

425-107

NUT,7/16"-14, G5

84шт.

4

700700845

GUARD

GUARD

40шт.

5

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

2шт.

6

748160

GUARD

- double

2шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

1шт.

8

6617922

PIN

- hinge

2шт.

9

700148969

GUARD

- draper, 21 foot

3шт.

10

700148847

CLAMP

HOLDDOWN

12шт.

11

700134757

PLATE

HOLDDOWN

12шт.

12

6832703

CLAMP BRACKET

HOLDDOWN

1шт.

13

6821268

SHIM

3шт.

14

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

15

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

1шт.
