Запчасти Case IH 425 (5-10) - SICKLE ASSEMBLY, RIGHT, 25 FOOT ONLY (58) - ATTACHMENTS/HEADERS

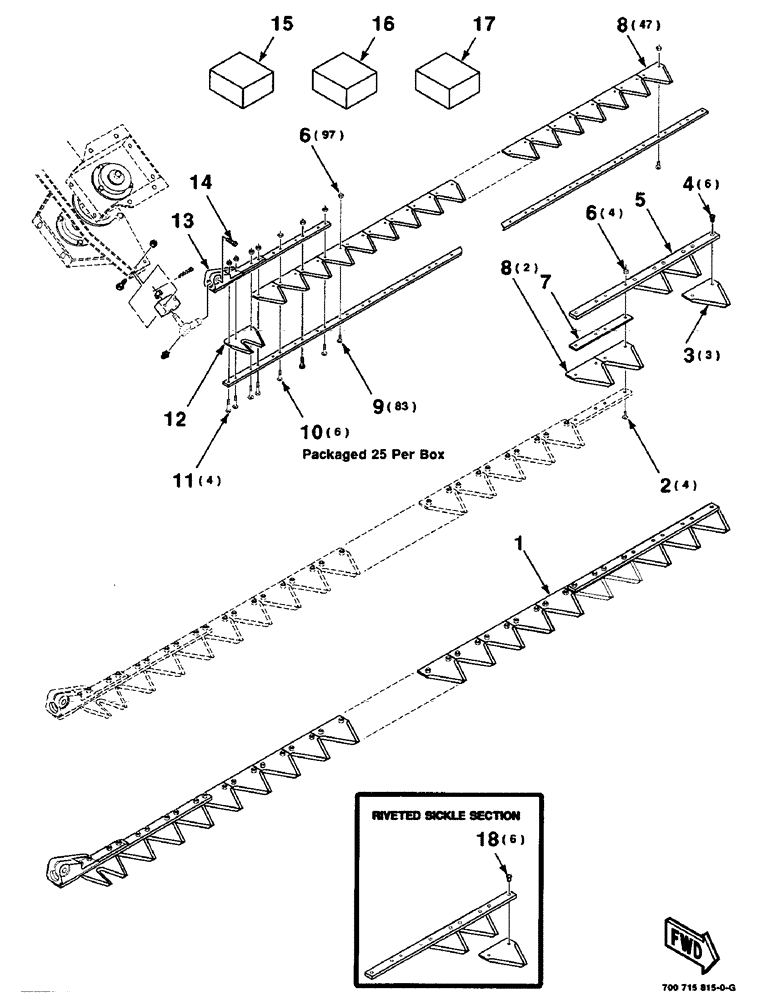

Схема запчастей Case IH 425 - (5-10) - SICKLE ASSEMBLY, RIGHT, 25 FOOT ONLY (58) - ATTACHMENTS/HEADERS
2
16
6
1
10
14
9
8
11
4
18
5
13
17
8
6
15
3
7
12

Артикул

Название

Примечание

Количество

1

700715815

KNIFE ASSY

SICKLE ASSEMBLY - right complete

1шт.

2

700705519

RIVET

#12-24 X 1 BOLT (Order item 16)

4шт.

3

51200281

KNIFE SECTION

SECTION - sickle, top serrated

3шт.

4

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 X 1/2 HSFCSHCS (Package Of 25 Bolts & Nuts)

6шт.

5

700715804

EXTENSION

SICKLE - extension complete

1шт.

6

700705521

RIVET

#12-24 LOCKNUT (Packaged with items 15, 16 and 17)

101шт.

7

700116713

SPACER

- sickle bar

1шт.

8

NLS

NO LONGER SERVICED

SECTION - sickle, top serrated (Packaged 25 Per Box)

49шт.

9

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (Order item 15)

83шт.

10

700709663

BOLT AND NUT

12-24 X 7/8 BOLT (Package Of 25 Bolts & Nuts)

6шт.

11

700705520

RIVET

#12-24 X 1-1/4 BOLT (Order item 17)

4шт.

12

700705463

KNIFE SECTION

SECTION - double end

1шт.

13

700116709

KNIFE HEAD

SICKLE HEAD WA

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

15

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (Packaged 50 Per Box)

1шт.

16

700705297

KIT

#12-24 X 1 BOLT, locknut & hex washer (Packaged 25 Per Box)

1шт.

17

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (Packaged 25 Per Box)

1шт.

18

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (Packaged 1 Pound Per Box)

6шт.

Выбрано товаров: 18
