Запчасти Case IH 425 (5-08) - SICKLE ASSEMBLY, LEFT, 25 FOOT ONLY (58) - ATTACHMENTS/HEADERS

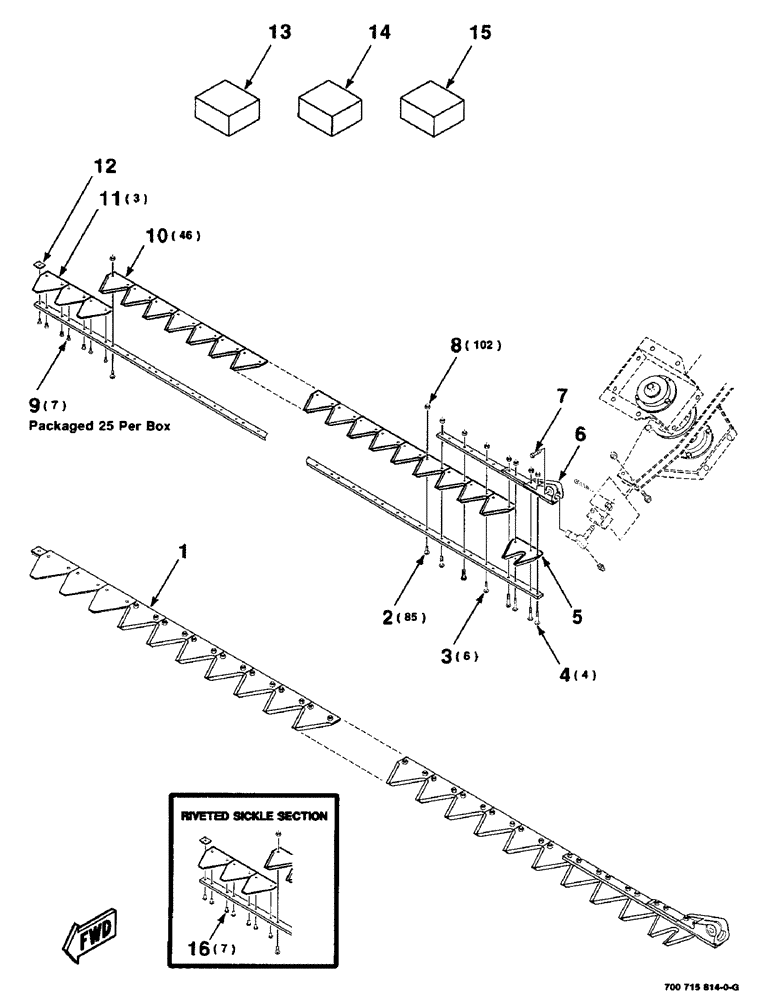

Схема запчастей Case IH 425 - (5-08) - SICKLE ASSEMBLY, LEFT, 25 FOOT ONLY (58) - ATTACHMENTS/HEADERS
11
2
10
12
9
3
5
1
14
7
16
8
15
13
4
6

Артикул

Название

Примечание

Количество

1

700715814

KNIFE

SICKLE ASSEMBLY - left complete

1шт.

2

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (Order item 13)

85шт.

3

700714011

BOLT

#12-24 X 7/8 BOLT (Order item 14)

6шт.

4

700705520

RIVET

#12-24 X 1-1/4 BOLT (Order item 15)

4шт.

5

700705462

KNIFE SECTION

SECTION - double end

1шт.

6

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

700705521

RIVET

#12-24 LOCKNUT (Packaged With Bolts)

102шт.

9

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 X 1/2 HSFCSHCS (Packaged 25 Per Box)

7шт.

10

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 Per Box)

46шт.

11

748152

KNIFE SECTION

SECTION - sickle, side serrated

3шт.

12

6821052

SHIM

1шт.

13

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (Packaged 50 Per Box)

1шт.

14

700709663

BOLT AND NUT

#12-24 X 7/8 BOLT, locknut (Packaged 25 Per Box)

1шт.

15

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (Packaged 25 Per Box)

1шт.

16

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (Packaged 1 Pound Per Box)

7шт.

Выбрано товаров: 16
