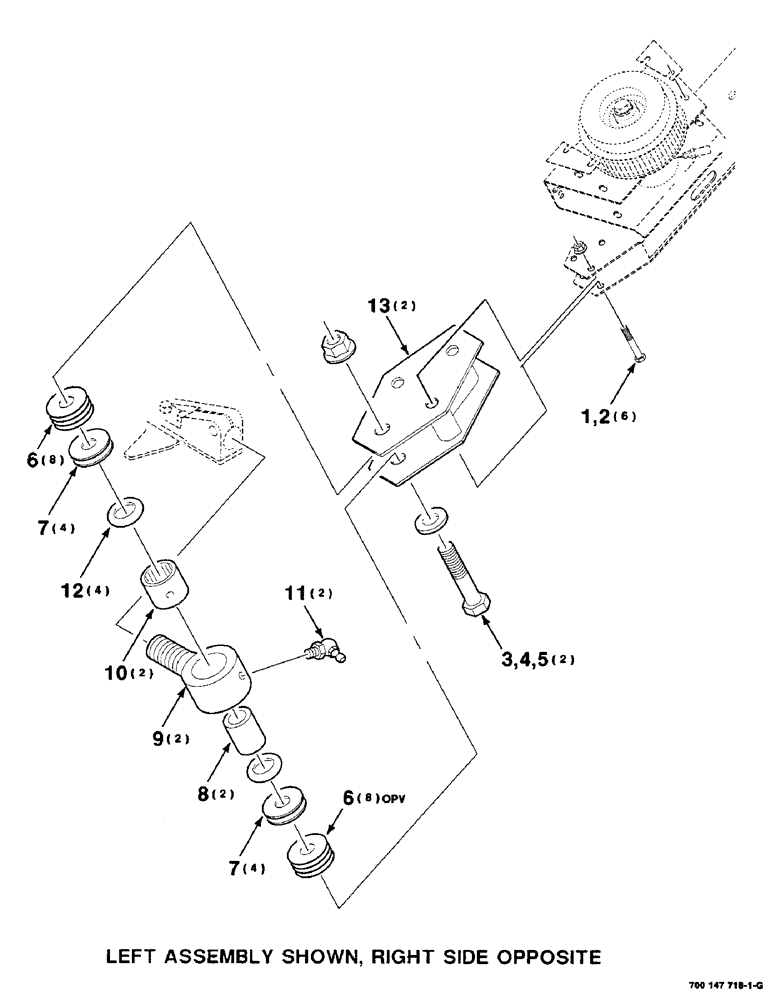

Запчасти Case IH 425 (5-02) - SICKLE MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

6шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

4

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

6

700147996

WASHER

16шт.

7

700147995

WASHER

8шт.

8

700118332

BRONZE BUSHING

BUSHING

2шт.

9

700147994

EYEBOLT

- sickle

2шт.

10

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

2шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

4шт.

13

700147997

SPACER

WA

2шт.
