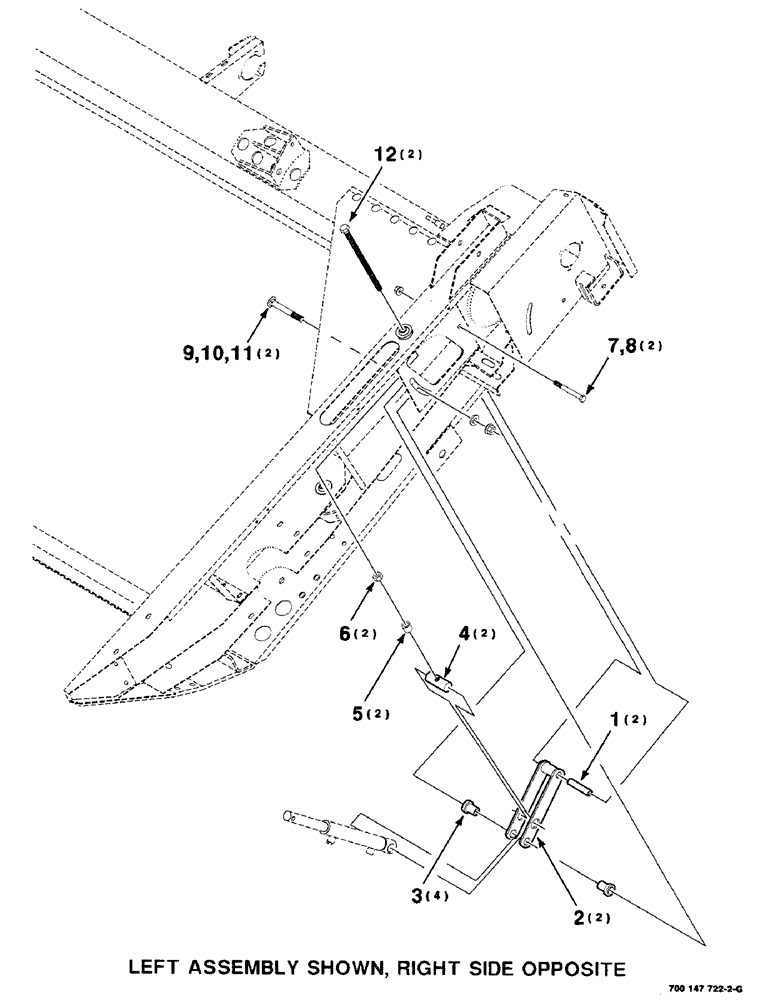

Запчасти Case IH 425 (3-6) - HYDRAULIC REEL LIFT MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700148880

SPACER

2шт.

2

700148875

ARM

WA

2шт.

3

700148878

BUSHING

4шт.

4

700148879

TRUNNION

2шт.

5

6168835

SPACER

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

9

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

2шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

12

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 B SPCL

2шт.
