Запчасти Case IH 425 (3-2) - REEL ARM ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

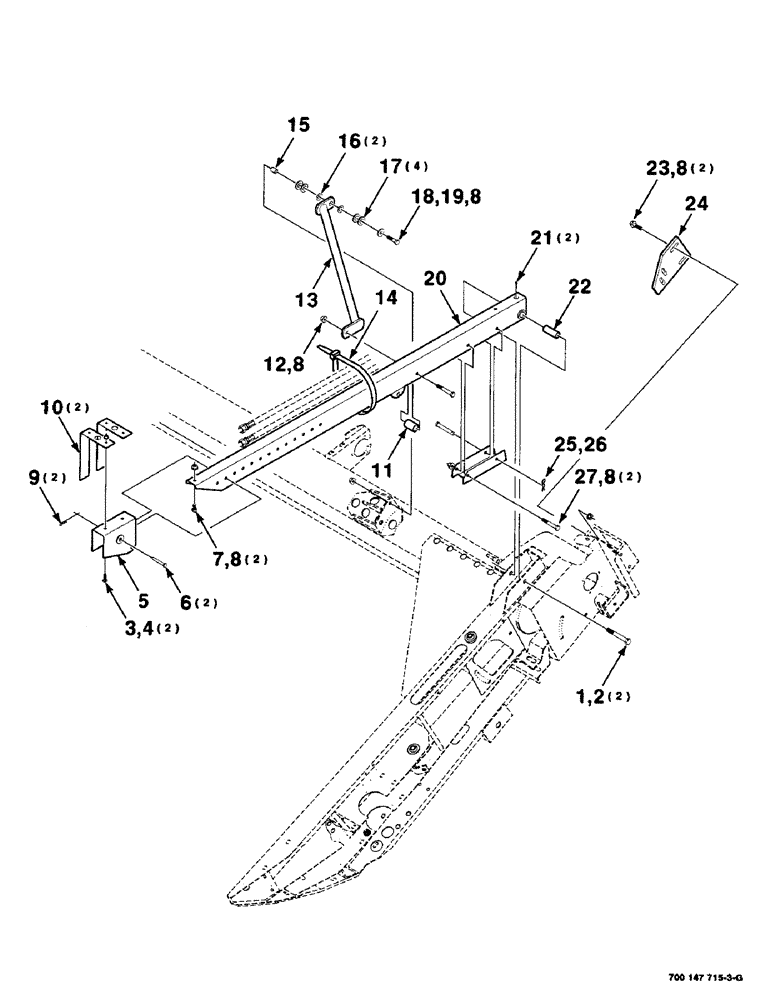

Схема запчастей Case IH 425 - (3-2) - REEL ARM ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS
13
1
2
9
21
10
19
7
5
26
12
3
27
14
8
6
8
4
8
16
22
11
23
24
20
8
15
25
18
8
17

Артикул

Название

Примечание

Количество

1

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

3

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

5

700147908

CHANNEL

WA

1шт.

6

700148902

PIN

- reel

2шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

9

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

10

700147899

ANGLE

- decal

2шт.

11

700122122

SPACER

TUBE

1шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

13

700147897

SUPPORT

WA

1шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - plastic

1шт.

15

700134178

TUBE,0.532" ID, 0.75" OD

1шт.

16

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

17

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

19

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

20

700147890

ARM

WA

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

22

700116331

SPACER

BUSHING

1шт.

23

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2-13 X 1-3/4 HFS GR8

2шт.

24

700147913

PLATE

- weight

1шт.

25

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

1шт.

26

T54573

PIN

.120 WIRE HAIRPIN COTTER

1шт.

27

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.

Выбрано товаров: 27
