Запчасти Case IH 425 (2-22) - SWAYBAR ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

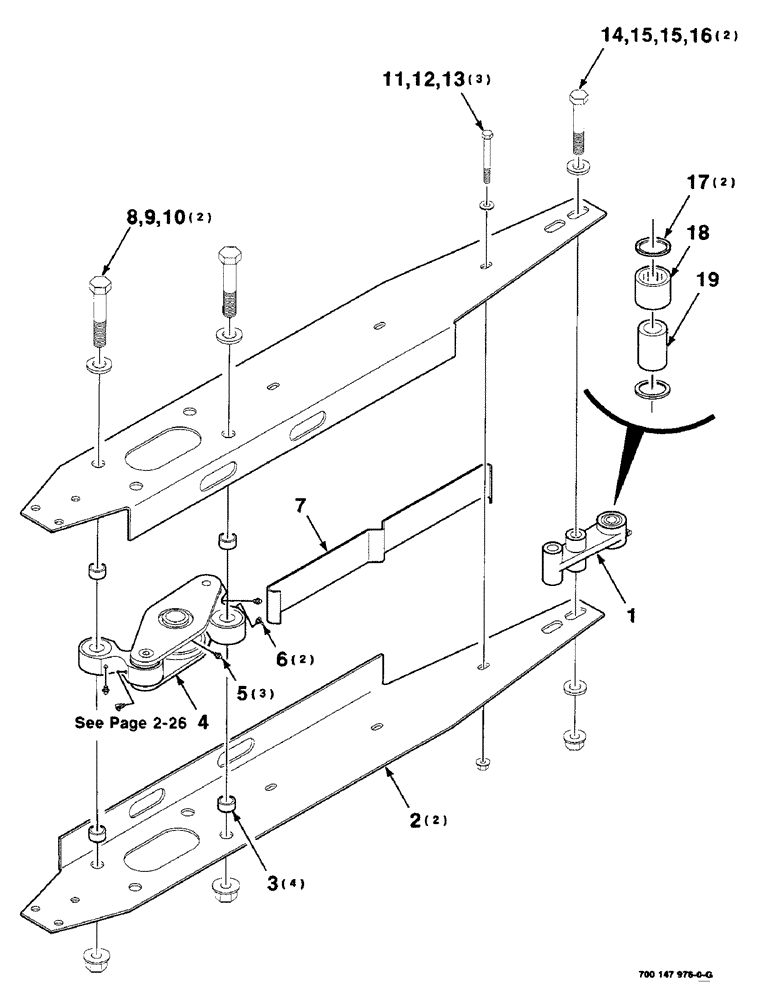

Схема запчастей Case IH 425 - (2-22) - SWAYBAR ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS
6
4
18
12
8
13
15
1
2
16
3
19
15
17
11
9
7
14
10
5

Артикул

Название

Примечание

Количество

1

700147982

LINK

ASSEMBLY (Includes items 17, 18 & 19)

1шт.

2

700147977

BAR

SWAYBAR

2шт.

3

700147981

SPACER

4шт.

4

700147978

LINK

ASSEMBLY

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

6

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

7

700147980

SPACER

1шт.

8

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

2шт.

9

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

10

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

11

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

14

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

16

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

17

697494R91

OIL SEAL

SEAL - oil

2шт.

18

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

19

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

Выбрано товаров: 19
