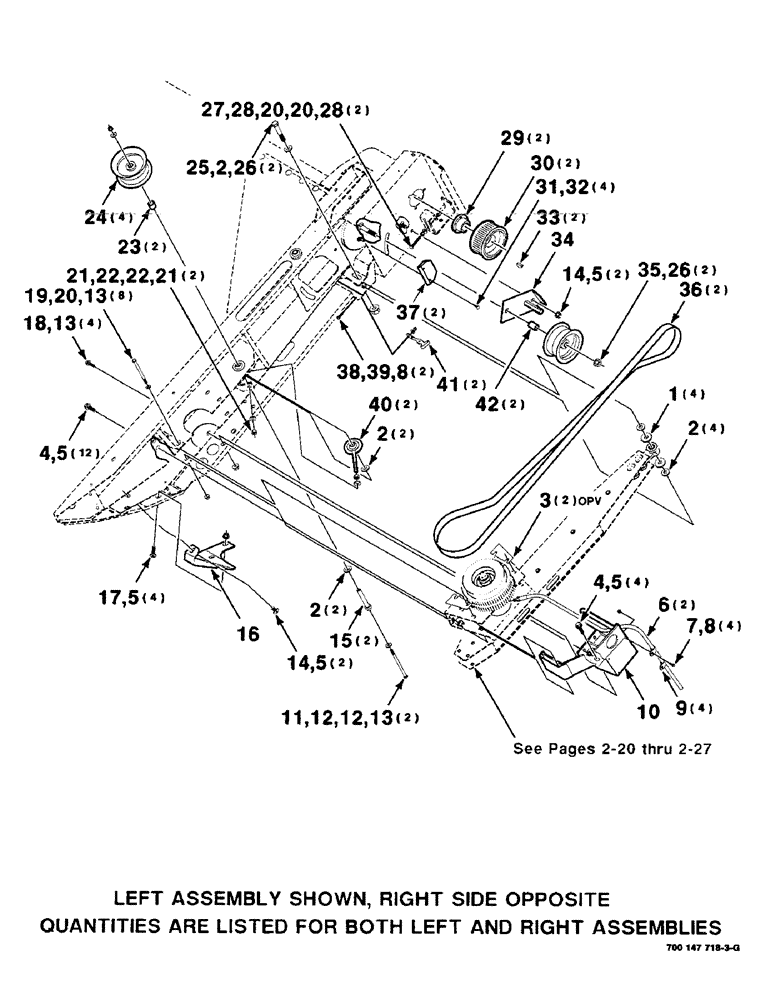

Запчасти Case IH 425 (2-18) - SICKLE DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6855423

WASHER

SPACER

4шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

10шт.

3

700147711

SHIM

2шт.

4

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

16шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

24шт.

6

700717331

HOSE

GREASE LINE

2шт.

7

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

4шт.

8

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line 3/8", Insul, 5/16" Bolt

4шт.

10

700147661

SUPPORT

WA - left

1шт.

700148838

SUPPORT

WA - right

1шт.

11

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

2шт.

12

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

14

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

15

700147667

TUBE,115 mm Length

WA

2шт.

16

700147993

GUARD

- sickle head, left

1шт.

700148835

GUARD

- sickle head, right

1шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

4шт.

18

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

19

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

8шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

23

6117279

SPACER

BUSHING

2шт.

24

700147639

FRONT IDLER

IDLER WA

4шт.

25

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

26

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

27

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

28

9628503

NUT,3/8"-16, G5

4шт.

29

7747280

ASSEMBLY

BUSHING - tapered

2шт.

30

700717274

SPROCKET ASSY.

SPROCKET - cog

2шт.

31

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

2шт.

34

700147654

PLATE

- pivot, left

1шт.

700148836

PLATE

- pivot, right

1шт.

35

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

2шт.

36

700717275

BELT

- drive, cog

2шт.

37

700718636

GUIDE

- belt

2шт.

38

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

39

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

40

700147657

PIVOT

WA

2шт.

41

700717323

LATCH

- rubber

2шт.

42

6599575

SPACER

2шт.
