Запчасти Case IH 425 (2-16) - SICKLE DRIVE ASSEMBLY, 30 FOOT (58) - ATTACHMENTS/HEADERS

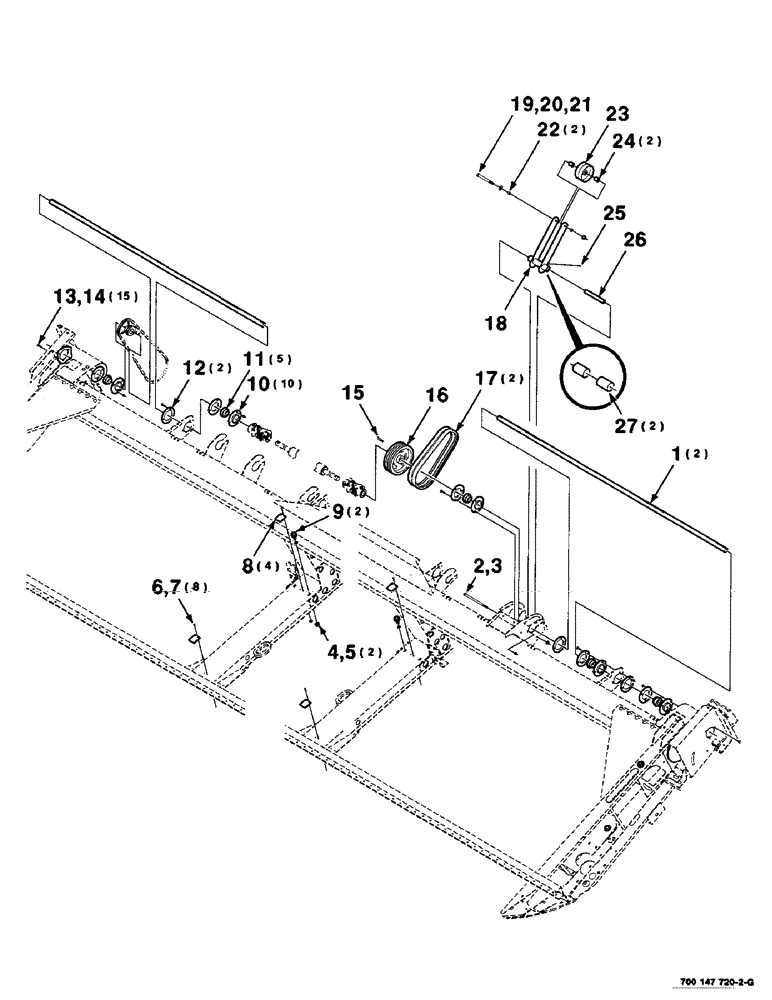

Схема запчастей Case IH 425 - (2-16) - SICKLE DRIVE ASSEMBLY, 30 FOOT (58) - ATTACHMENTS/HEADERS
26
10
22
23
8
9
6
2
16
3
25
15
18
24
5
17
1
7
11
4
19
14
13
27
12
20
21

Артикул

Название

Примечание

Количество

1

700148844

SHAFT

2шт.

2

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

1шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

5

700707867

NUT

1/2-20 HFTLN GR/G

2шт.

6

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

8шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

700115400

BAR PLATE

BEARING

4шт.

9

700705612

CAM FOLLOWER

BEARING - cam follower

2шт.

10

825620C1

RETAINER

10шт.

11

710004

PTO SHAFT

- spherical

5шт.

12

700117899

SHIM

2шт.

13

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

15шт.

14

231-5146

FLANGE NUT,3/8"-16

15шт.

15

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 X 2 1/2 KEY - gib

1шт.

16

700148845

SHEAVE

1шт.

17

700717297

SET OF 2 BELTS

BELT - powerband

2шт.

18

700148848

ARM

WA - idler (Includes item 27)

1шт.

19

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 X 6 C

1шт.

20

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

21

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

22

447821

SPACER

2шт.

23

853804

ARM

IDLER - flat

1шт.

24

6599575

SPACER

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

26

700148851

TUBE,0.562" ID, 25.4 mm OD, 188.5 mm Length

1шт.

27

740217

BUSHING

2шт.

Выбрано товаров: 27
