(2-10) - U-JOINT ASSEMBLY, 700711898 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 425 (2-10) - U-JOINT ASSEMBLY, 700711898 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

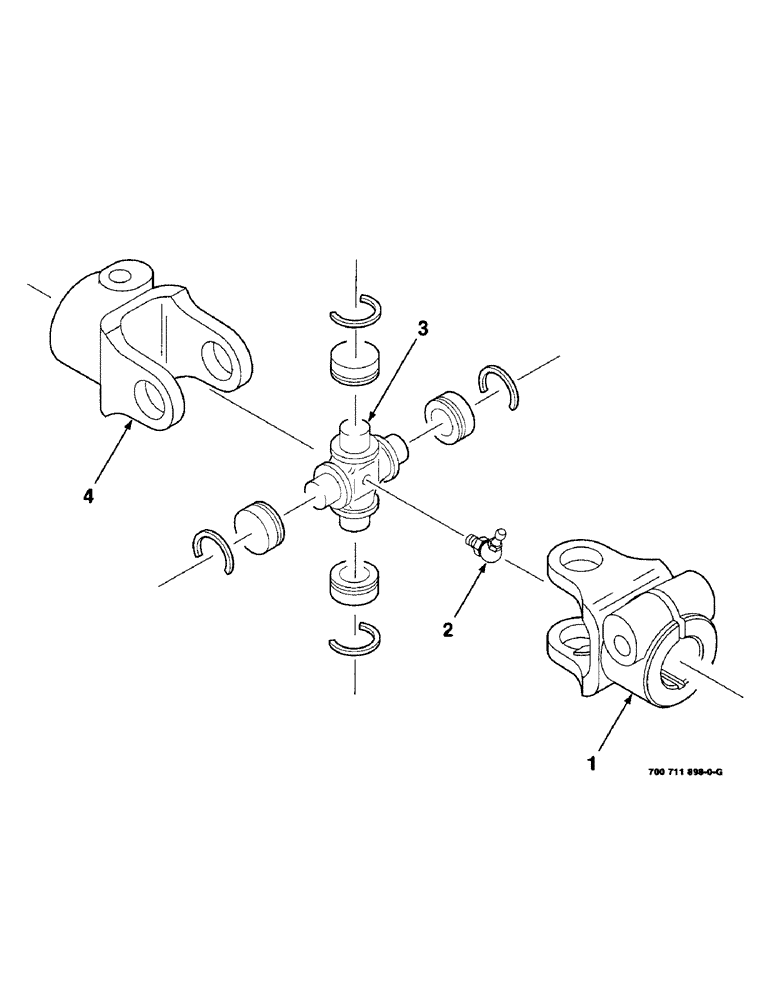

Схема запчастей Case IH 425 - (2-10) - U-JOINT ASSEMBLY, 700711898 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711898

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

1

757716

CLAMP

YOKE - clamp

1шт.

2

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK 1/8-27 X 65 DEGREES

1шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 2)

1шт.

4

700711953

CLAMP

YOKE - clamp

1шт.
