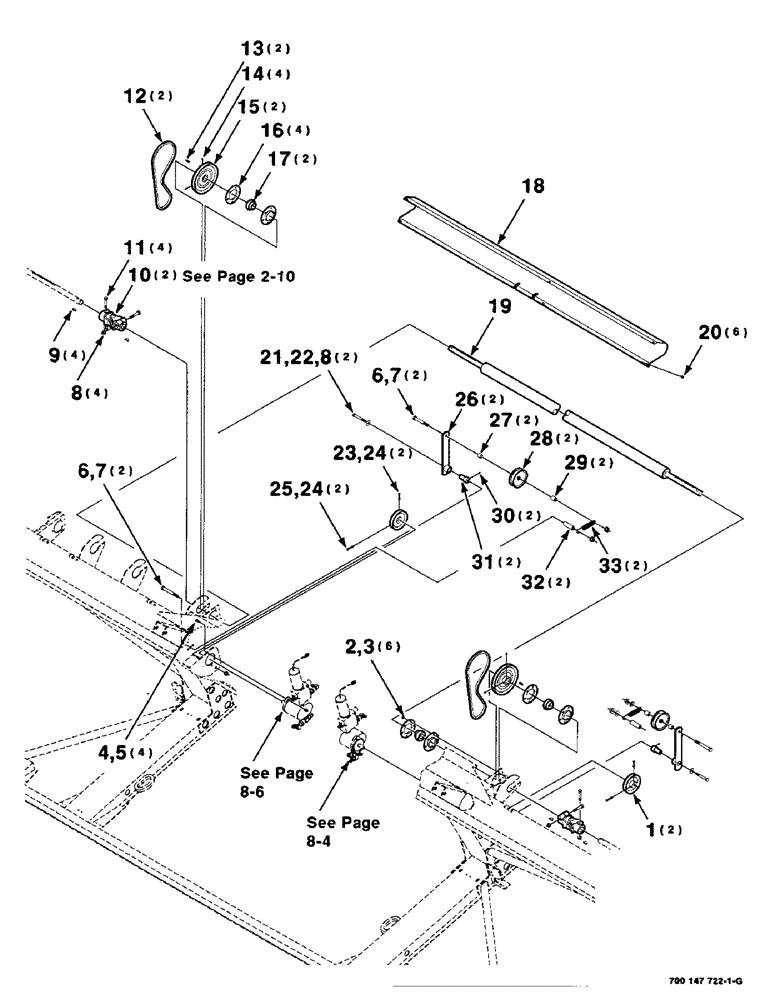

Запчасти Case IH 425 (2-08) - REEL AND DRAPER DRIVE ASSEMBLIES (58) - ATTACHMENTS/HEADERS

1

700707511

PULLEY

SHEAVE

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

3

231-5146

FLANGE NUT,3/8"-16

6шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

6

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

9

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

4шт.

10

700711898

UNIVERSAL JOINT

U-JOINT

2шт.

11

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

4шт.

12

700717296

BELT

V-BELT

2шт.

13

Q53

KEY,1/4" Sq x 1", Par

2шт.

14

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPHSSS NP

4шт.

15

700717302

SHEAVE

2шт.

16

712612

FLANGE

4шт.

17

455104R11

COLLAR

BEARING - spherical

2шт.

18

700148867

SHIELD

- Ctr

1шт.

19

700148854

SHAFT

WA

1шт.

20

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

6шт.

21

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

22

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

26

700148862

ARM

WA

2шт.

27

201106C1

SPACER

2шт.

28

662958R91

PULLEY

IDLER

2шт.

29

700148864

SPACER

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

31

700130238

BUSHING

2шт.

32

700148865

SPACER

2шт.

33

700717318

SPRING

2шт.
