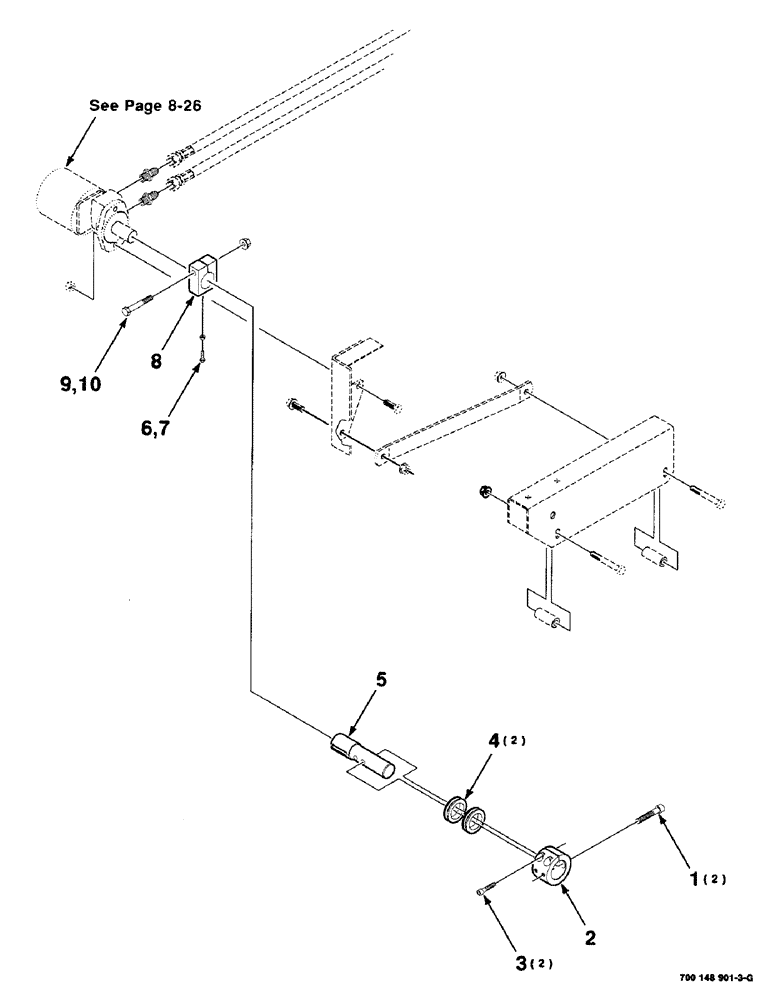

Запчасти Case IH 425 (2-06) - REEL DRIVE MOUNTING ASSEMBLY, PICKUP REEL (58) - ATTACHMENTS/HEADERS

1

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

1/2-13 X 2-3/4 HSHCS SPL

2шт.

2

700149655

CLAMP

1шт.

3

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8-16 X 1-3/4 HSHCS SPL

2шт.

4

700707073

GROMMET

2шт.

5

700148905

SHAFT

- reel, pickup

1шт.

6

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

1шт.

7

425-104

NUT,1/4"-20, Cl 5

1шт.

8

700148903

CLAMP

1шт.

9

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

1шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.
