Запчасти Case IH 425 (2-02) - DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

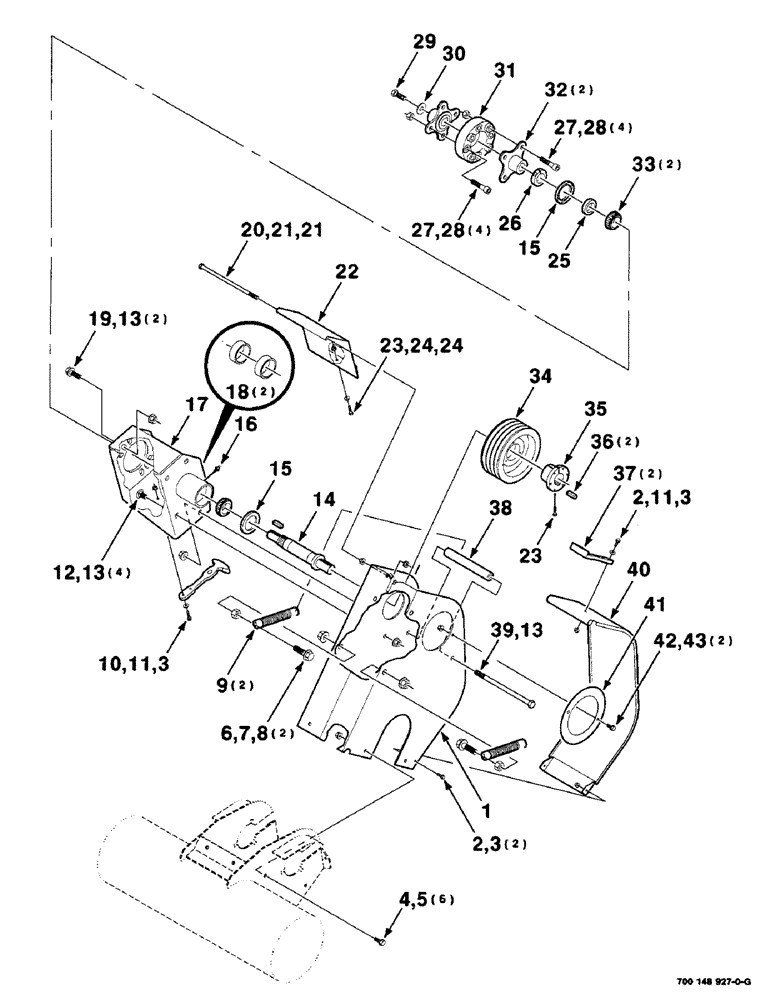

Схема запчастей Case IH 425 - (2-02) - DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS
10
2
13
35
21
37
1
16
2
26
25
39
7
11
24
13
22
33
5
34
42
9
31
41
36
23
13
6
4
15
3
15
18
8
27
23
27
38
24
28
11
40
29
3
32
14
28
43
12
20
21
30
19
17
3

Артикул

Название

Примечание

Количество

1

700148933

SHIELD

CHANNEL WA

1шт.

2

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

3шт.

3

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8-11 X 2 HFS GR8

2шт.

7

425-1010

NUT,5/8"-11, G5

2шт.

8

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

9

700717318

SPRING

- extension

2шт.

10

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

1шт.

11

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

12

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

7шт.

14

700148928

SHAFT

1шт.

15

700717365

SEAL

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

17

700148937

CHANNEL

WA (Includes item 18)

1шт.

18

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

19

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

20

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

3/8-16 X 9 B

1шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

700148944

SHIELD

1шт.

23

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

25

700149586

RING

1шт.

26

700706600

COLLAR

- clamp, threaded

1шт.

27

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

8шт.

28

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

8шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

30

6165138

WASHER

WASHER

1шт.

31

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

32

700114803

HUB

WA

2шт.

33

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE

2шт.

34

700148943

SHEAVE

1шт.

35

700711364

BUSHING

1шт.

36

T13450

KEY

1/4 X 1-1/4 KEY

2шт.

37

700717323

LATCH

- rubber

2шт.

38

700148945

TUBE,0.562" ID, 25.4 mm OD, 179 mm Length

SPACER

1шт.

39

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

1шт.

40

700148929

SHIELD

WA

1шт.

41

487777

COVER

1шт.

42

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

43

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

Выбрано товаров: 43
