(8-46) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700717310 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE

Запчасти Case IH 425 (8-46) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700717310 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS

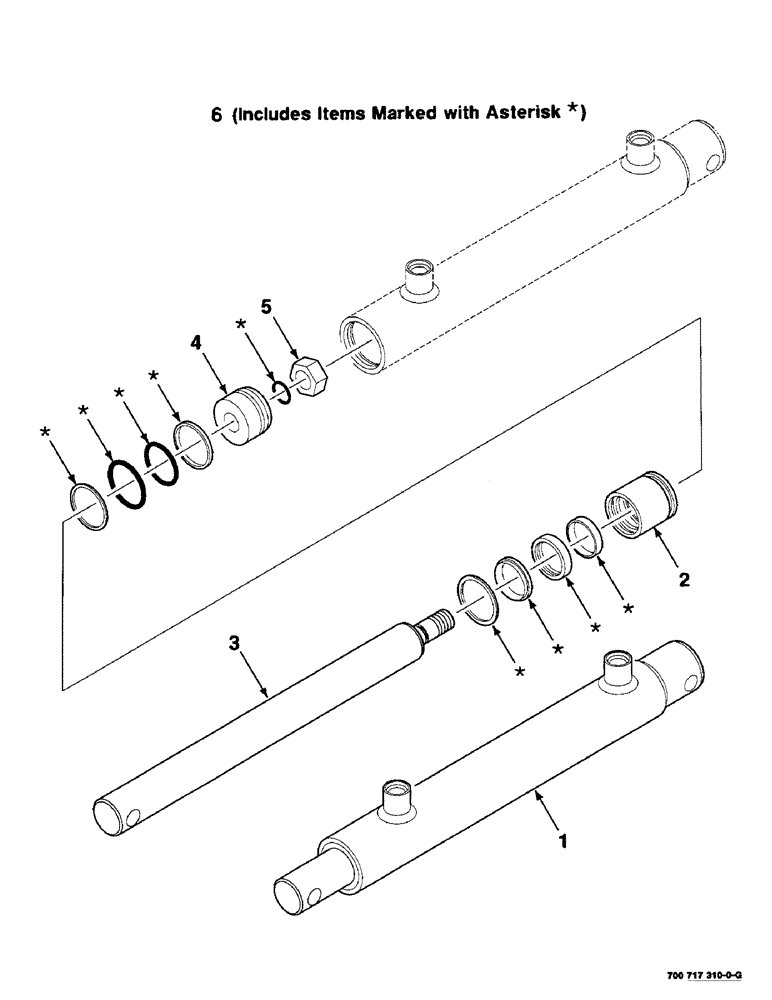

Схема запчастей Case IH 425 - (8-46) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700717310 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS
5
2
3
1
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717310

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE (1-1/2" Bore x 12" Stroke)

1шт.

2

700714206

GUIDE

1шт.

3

700718330

ROD

- piston

1шт.

4

700714203

PISTON

1шт.

5

700714202

NUT

- lock

1шт.

6

700714201

SEAL PACKAGE

SEAL AND O-RING REPAIR KIT

1шт.
