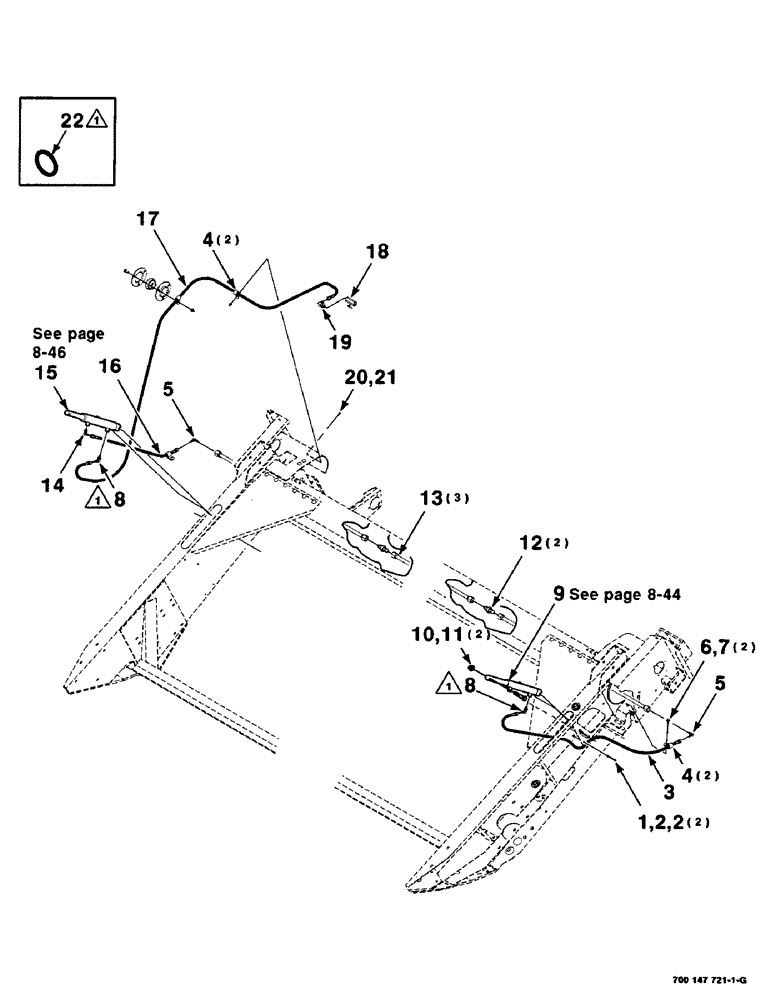

Запчасти Case IH 425 (8-42) - HYDRAULIC REEL LIFT ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

3

7796279

HOSE

- hydraulic

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Hose 3/4", Insul, 3/8" Bolt

4шт.

5

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degrees

2шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (Includes item 22)

2шт.

9

700717311

CYLINDER

HYDRAULIC CYLINDER - slave

1шт.

10

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

12

846477

UNION

FITTING - hydraulic

2шт.

13

700708234

TUBE,9.52 mm OD, 2200 mm Length

LINE - hydraulic (21 Foot)

3шт.

700707728

FLEXIBLE HOSE

LINE - hydraulic (25 Foot)

3шт.

700707573

FLEXIBLE HOSE

LINE - hydraulic (30 Foot)

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

15

700717310

CYLINDER

HYDRAULIC CYLINDER - master

1шт.

16

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

1шт.

17

700717390

HOSE

- hydraulic

1шт.

18

700711345

VALVE

1шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

22

738468

O-RING

1шт.
