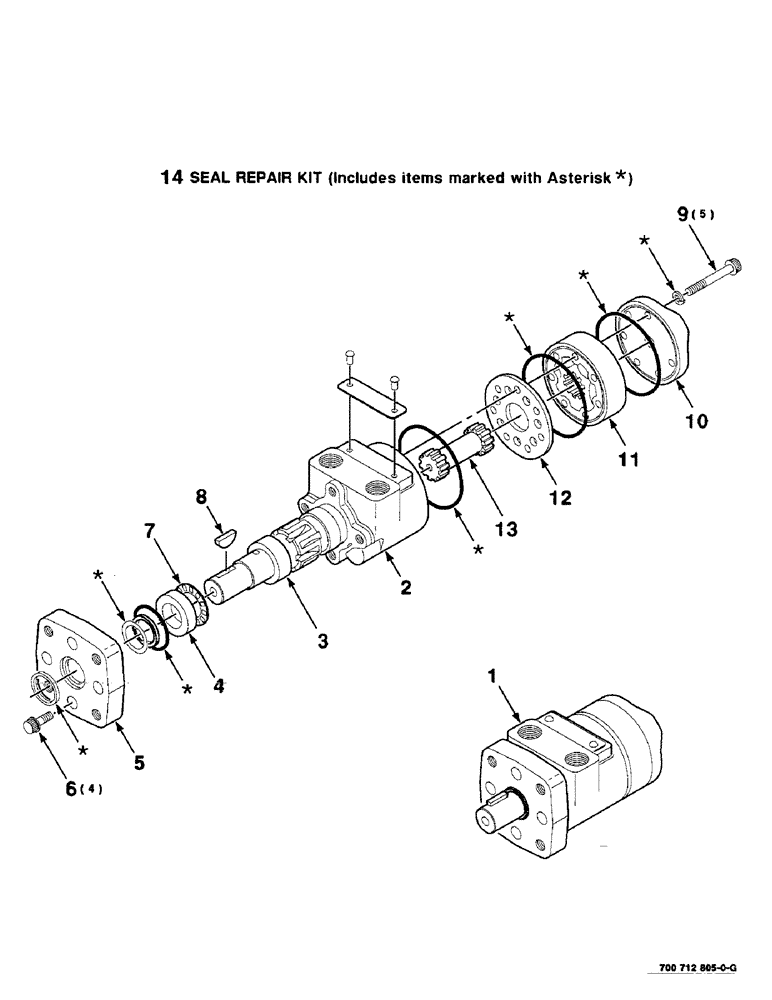

Запчасти Case IH 425 (8-40) - HYDRAULIC MOTOR ASSEMBLY, DRAPER DRIVE, 700712805 HYDRAULIC MOTOR ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS

1

700712805

MOTOR

HYDRAULIC MOTOR ASSEMBLY COMPLETE

1шт.

2

700710628

HOUSING

1шт.

3

8732513

SHAFT

- output, keyed

1шт.

4

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE - bearing

1шт.

5

700710623

FLANGE

- mounting

1шт.

6

700713327

SCREW

5/16-24 X 7/8 CAP SCREW, 12 point

4шт.

7

63780C91

THRUST BEARING

- thrust, needle

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

136587A1

SCREW,Torx Hd, 5/16" - 24 x 1 5/8"

5/16-24 X 1-5/8 CAP SCREW, 12 point

5шт.

10

700713243

CAP

- end

1шт.

11

700710630

ROTOR ASSY.

GEROTOR SET

1шт.

12

8732539

SPACER

PLATE - spacer

1шт.

13

H181693

SHAFT

DRIVE

1шт.

14

1542724C1

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
