(8-30) - HYDRAULIC DRAPER DRIVE ASSEMBLY, RIGHT, 21 FOOT

Запчасти Case IH 425 (8-30) - HYDRAULIC DRAPER DRIVE ASSEMBLY, RIGHT, 21 FOOT (35) - HYDRAULIC SYSTEMS

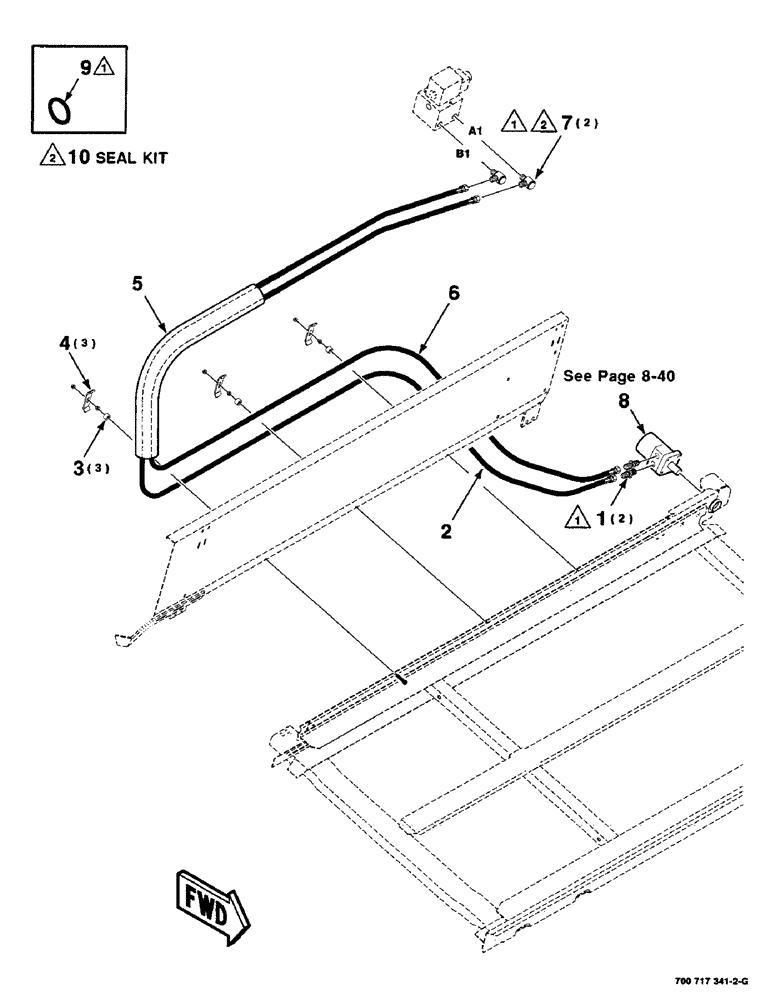

Схема запчастей Case IH 425 - (8-30) - HYDRAULIC DRAPER DRIVE ASSEMBLY, RIGHT, 21 FOOT (35) - HYDRAULIC SYSTEMS
10
3
5
4
7
1
9
2
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - Str (Includes item 9)

2шт.

2

700717342

HOSE

- hydraulic

1шт.

3

6827794

SPACER

SLEEVE

3шт.

4

700147916

CLAMP

- line

3шт.

5

700717325

SLEEVE

- nylon

1шт.

6

700717341

HOSE

- hydraulic

1шт.

7

700717316

FITTING

SWIVEL (Includes items 9 and 10)

2шт.

8

700712805

MOTOR

ASSEMBLY - draper

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

700717508

KIT

SEAL KIT

1шт.
