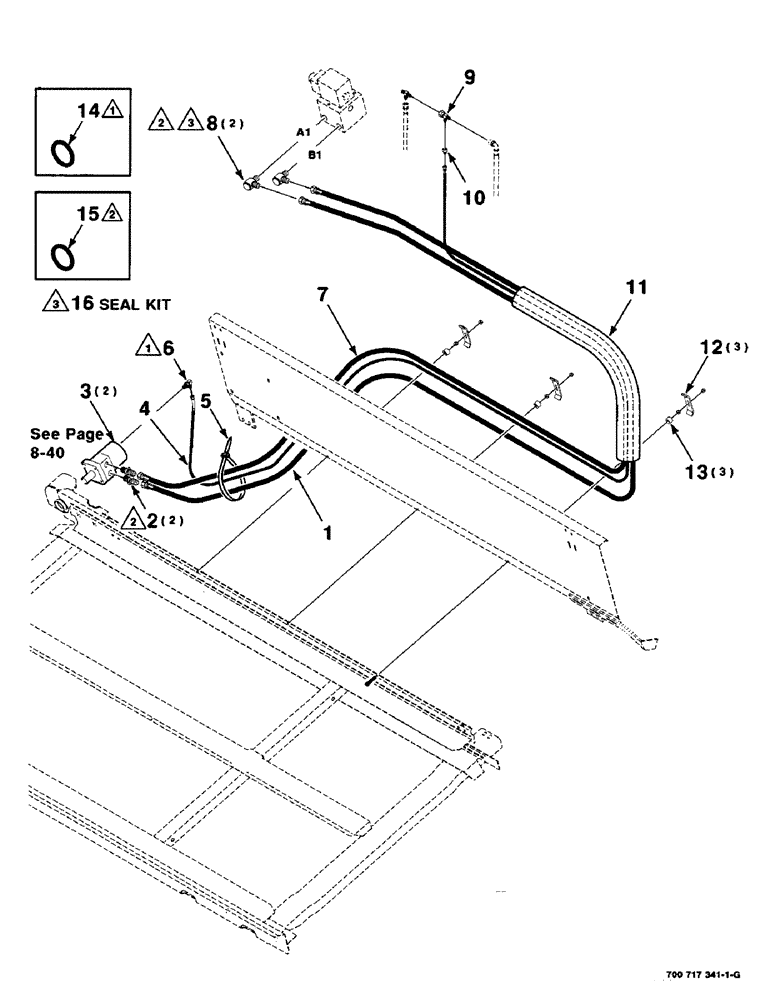

Запчасти Case IH 425 (8-28) - HYDRAULIC DRAPER DRIVE ASSEMBLY, LEFT, 21 FOOT (35) - HYDRAULIC SYSTEMS

1

700717342

HOSE

- hydraulic

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - Str (Includes item 15)

1шт.

3

700712805

MOTOR

ASSEMBLY - draper

2шт.

4

700717391

HOSE

- hydraulic

1шт.

5

529070

CABLE TIE,368.3mm L

TIE - cable

1шт.

6

700707498

ELBOW

- 90 degrees (Includes item 14)

1шт.

7

700717341

HOSE

- hydraulic

1шт.

8

700717316

FITTING

SWIVEL (Includes items 15 and 16)

2шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adapter 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

10

7791361

FITTING

ADAPTER

1шт.

11

700717325

SLEEVE

- nylon

1шт.

12

700147916

CLAMP

- line

3шт.

13

6827794

SPACER

SLEEVE

3шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

700717508

KIT

SEAL KIT

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
