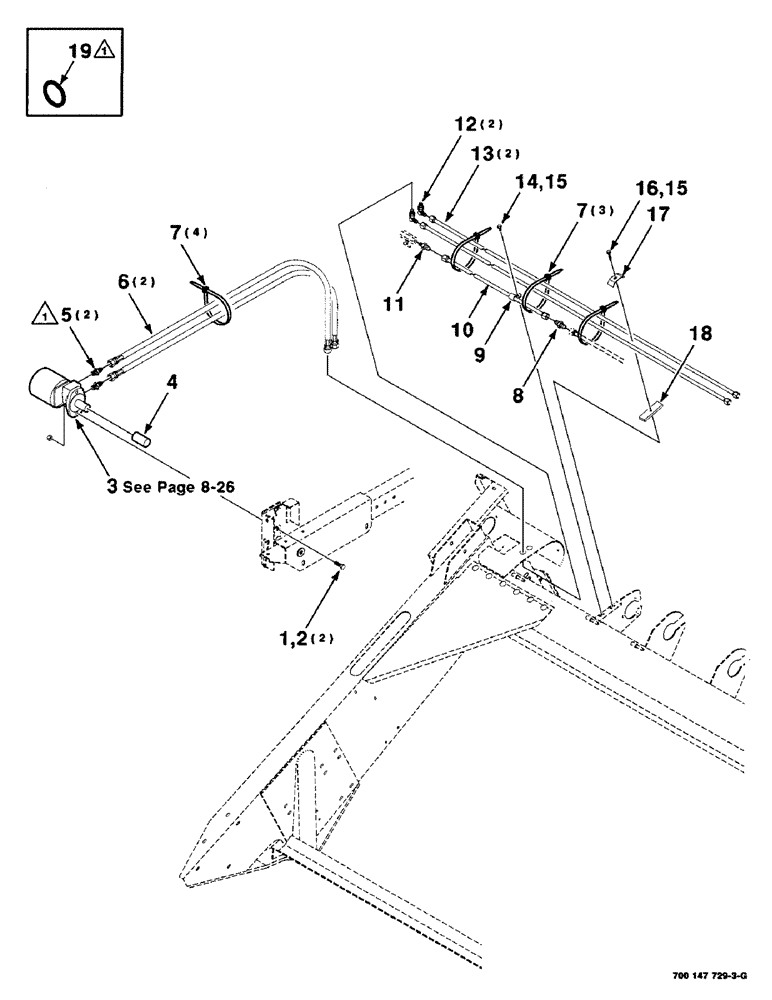

Запчасти Case IH 425 (8-20) - HYDRAULIC REEL DRIVE ASSEMBLY, 21 FOOT (35) - HYDRAULIC SYSTEMS

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

3

700717309

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - reel

1шт.

4

700718364

COVER

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING (Includes item 19)

2шт.

6

700717340

HOSE

- hydraulic

2шт.

7

529070

CABLE TIE,368.3mm L

TIE - cable

7шт.

8

846477

UNION

FITTING - hydraulic

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line 3/8", Insul, 5/16" Bolt

1шт.

10

700710157

TUBE,9.52 mm OD, 1130 mm Length

LINE - hydraulic

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - hydraulic

1шт.

12

700717271

ELBOW

- bulkhead

2шт.

13

700708739

FLEXIBLE HOSE

LINE - hydraulic

2шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

16

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

1шт.

17

6246995

CLAMP

1шт.

18

700717295

PAD

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
