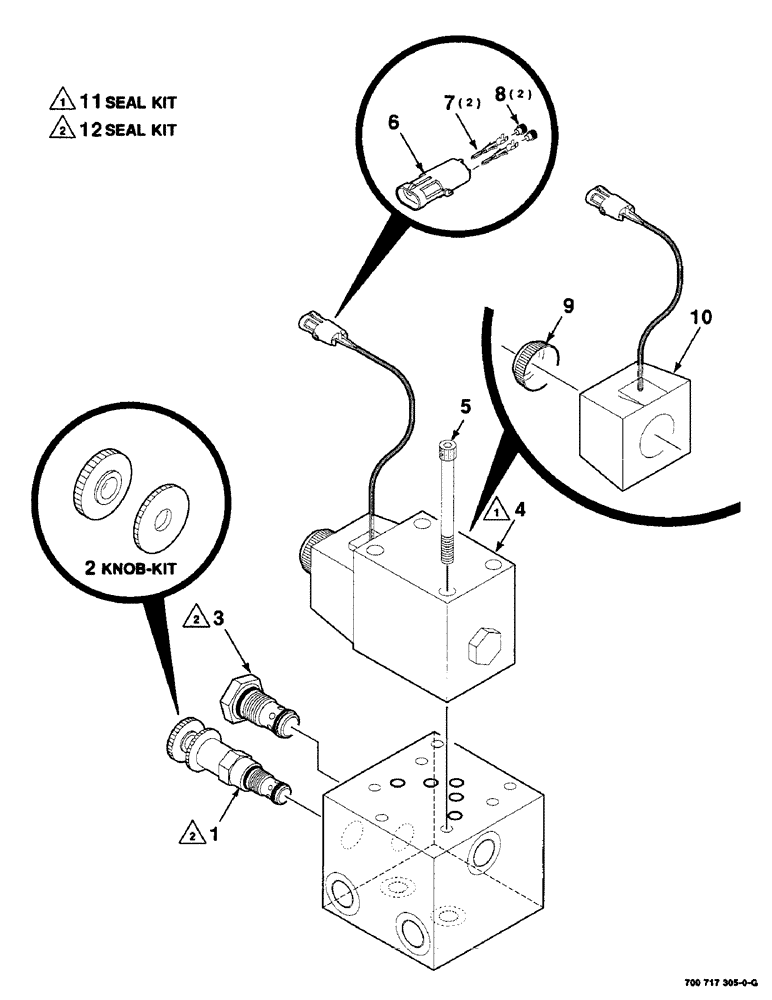

Запчасти Case IH 425 (8-18) - VALVE ASSEMBLY, 700717305 VALVE ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS

700717305

VALVE

ASSEMBLY COMPLETE

1шт.

1

700719234

VALVE, PRESSURE RELI

RELIEF VALVE (Includes items 2 and 12)

1шт.

2

700715666

KNOB

KIT - knob

1шт.

3

700719235

VALVE, CHECK

CHECK VALVE (Includes item 12)

1шт.

4

700719230

SOLENOID

- valve (Includes items 6, 7, 8, 9, 10 and 11)

1шт.

5

700719238

BOLT KIT

1шт.

6

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud, 2 pin, male

1шт.

7

700706401

TERMINAL

PIN - male (18-20 Gauge)

2шт.

8

700706400

PLUG

SEAL (18-20 Gauge)

2шт.

9

700719232

NUT

1шт.

10

700719233

SOLENOID

(Includes item 5, 6 and 7)

1шт.

11

700719231

KIT

SEAL KIT

1шт.

12

149942C1

SEAL KIT

1шт.
