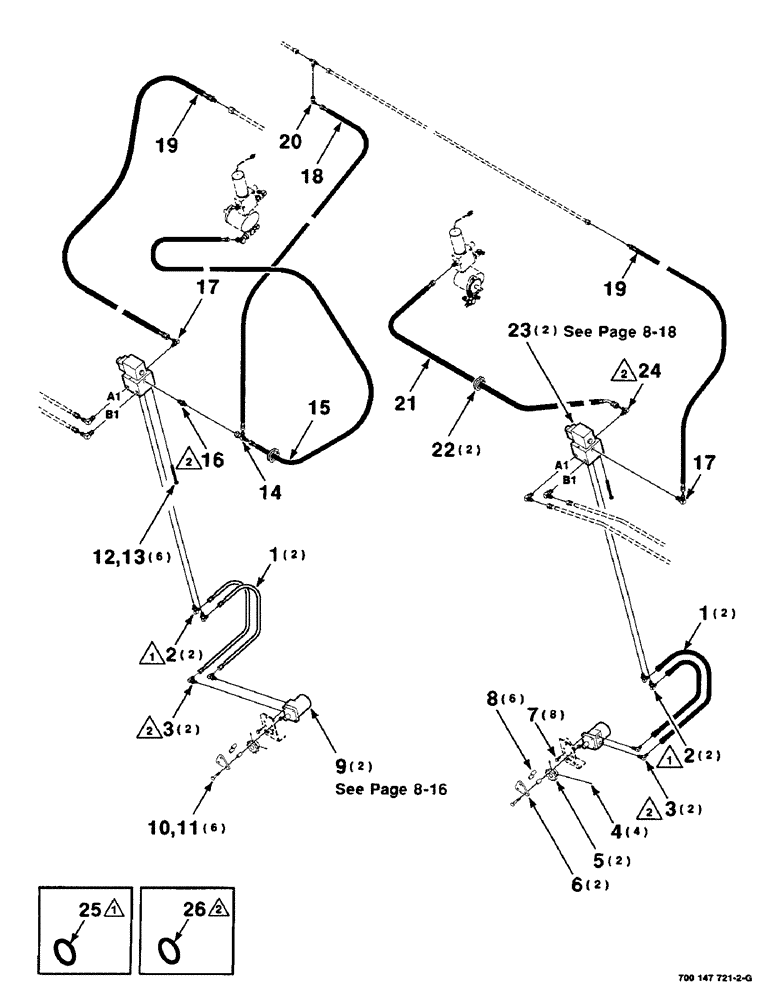

Запчасти Case IH 425 (8-14) - HYDRAULIC DRAPER DRIVE ASSEMBLY, CONTINUED (35) - HYDRAULIC SYSTEMS

1

700718302

HOSE

- hydraulic

4шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 25) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

4шт.

3

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degrees (Includes item 26)

4шт.

4

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPHSSS NP

4шт.

5

700717299

SPROCKET ASSY.

SPROCKET - 11 tooth

2шт.

6

700148852

BATTERY BOX

HOLDDOWN

2шт.

7

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

8

147306

BUSHING

SPACER

6шт.

9

700717304

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - draper shift

2шт.

10

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 RHSNB

6шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

12

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

5/16-18 X 4-1/2 C

6шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

6шт.

14

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adapter 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

15

700717338

HOSE

- hydraulic

1шт.

16

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING (Includes item 26)

1шт.

17

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees

2шт.

18

700717392

HOSE

- Hyd

1шт.

19

700717339

HOSE

- hydraulic

2шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

21

700717335

HOSE

- hydraulic

1шт.

22

700105142

GROMMET

TRIM

2шт.

23

700717305

VALVE

ASSEMBLY

2шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 26) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

25

738468

O-RING

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
