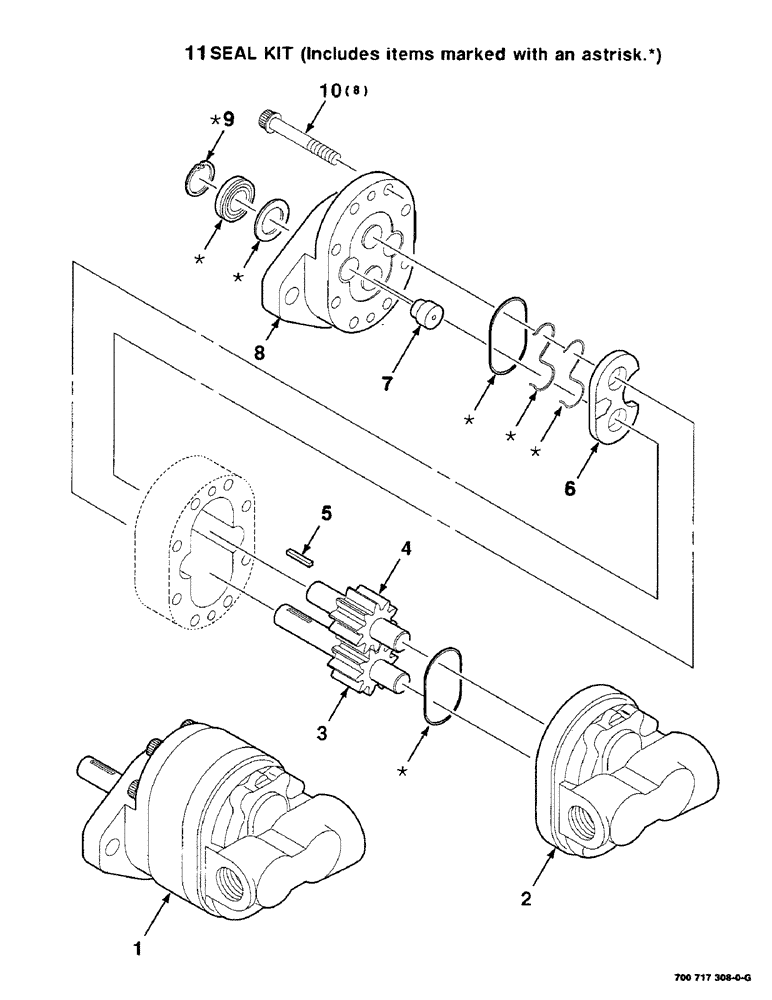

Запчасти Case IH 425 (8-12) - HYDRAULIC PUMP ASSEMBLY, 700717308 HYDRAULIC PUMP ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS

1

700717308

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY COMPLETE

1шт.

2

700717600

BACK PLATE

1шт.

3

700717601

GEAR

- drive

1шт.

4

700717602

GEAR, IDLER

GEAR - idler

1шт.

5

H233346

KEY

1шт.

6

700717604

PLATE

- wear

1шт.

7

291743A1

PLUG

1шт.

8

291734A1

PLATE

- front

1шт.

9

7038235

RING

- retaining

1шт.

10

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

CAP SCREW - 12 point

8шт.

11

700717606

SEAL KIT

SEAL KIT, Includes items in art marked with asterisk.

1шт.
