(8-10) - HYDRAULIC PUMP ASSEMBLY, 700717303 HYDRAULIC PUMP ASSEMBLY COMPLETE

Запчасти Case IH 425 (8-10) - HYDRAULIC PUMP ASSEMBLY, 700717303 HYDRAULIC PUMP ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS

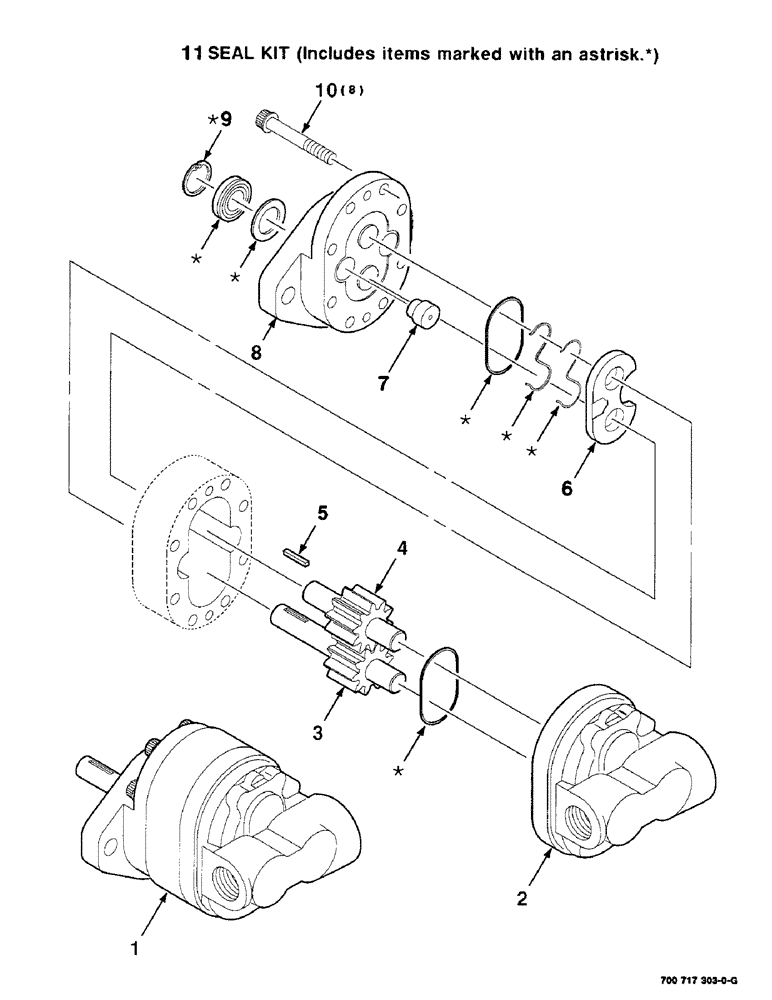

Схема запчастей Case IH 425 - (8-10) - HYDRAULIC PUMP ASSEMBLY, 700717303 HYDRAULIC PUMP ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS
9
10
3
8
4
5
2
11
1
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717303

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY COMPLETE

1шт.

2

700717600

BACK PLATE

1шт.

3

700717607

GEAR

- drive

1шт.

4

700717608

GEAR, IDLER

GEAR - idler

1шт.

5

861542

FELT SEAL

1шт.

6

700717604

PLATE

- wear

1шт.

7

291743A1

PLUG

1шт.

8

291734A1

PLATE

- front

1шт.

9

7038235

RING

- retaining

1шт.

10

730184

BOLT,M16 x 280mm

CAP SCREW - 12 point

8шт.

11

700717606

SEAL KIT

SEAL KIT, Includes items in art marked with an asterisk

1шт.
