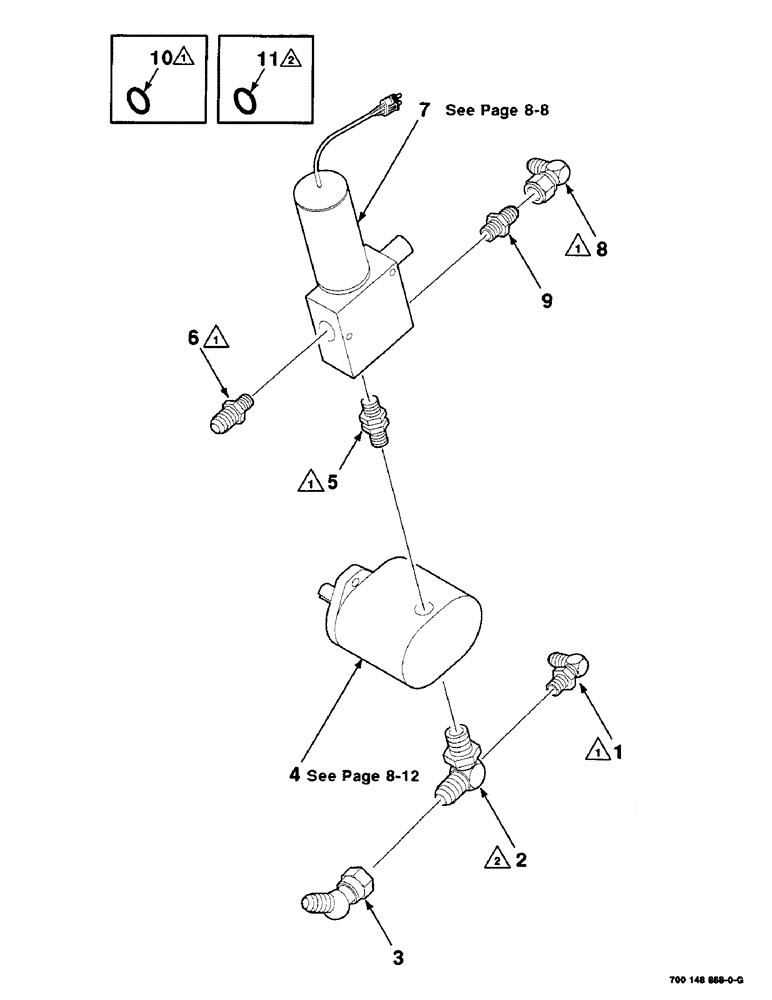

Запчасти Case IH 425 (8-06) - PUMP ASSEMBLY, RIGHT (35) - HYDRAULIC SYSTEMS

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

(Includes item 10) 90º, 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

2

700148869

ELBOW

- 90 degrees (Includes item 11)

1шт.

3

700701790

ELBOW

- 45 degrees

1шт.

4

700717308

PUMP, HYDRAULIC

PUMP ASSEMBLY - reel

1шт.

5

700717319

UNION

(Includes item 10)

1шт.

6

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - Str (Includes item 10)

1шт.

7

700717307

VALVE

ASSEMBLY - flow control

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

(Incl. item 10) 90º, 3/4"-16, 37º x 3/4"-16, 37º Fem Sw

1шт.

9

7846793

CONNECTOR, ELEC

FITTING - Str

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

738476

O-RING

1шт.
