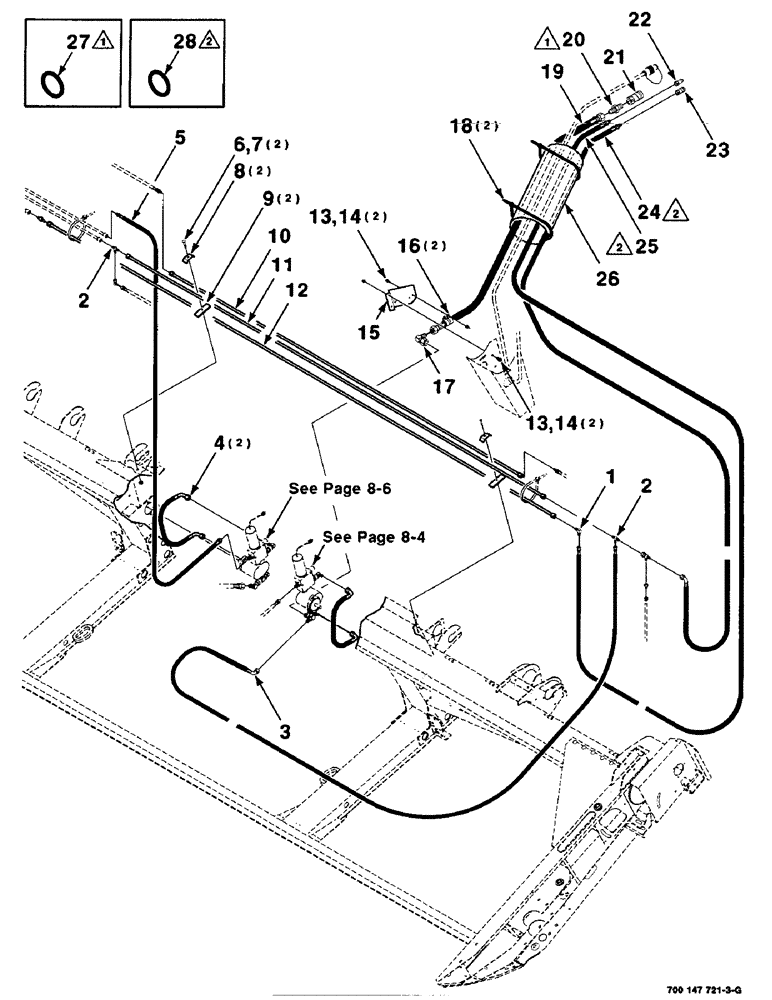

Запчасти Case IH 425 (8-02) - HYDRAULIC DRAPER DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degrees

1шт.

2

218-596

TEE,1 1/16"-12 37 Degree

2шт.

3

700717336

HOSE

- hydraulic

1шт.

4

700717334

HOSE

- hydraulic

2шт.

5

700717393

HOSE

- hydraulic

1шт.

6

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

6246995

CLAMP

2шт.

9

700717295

PAD

2шт.

10

700717312

TUBE,19.05 mm OD, 2794 mm Length

LINE - hydraulic

1шт.

11

700717313

TUBE,19.05 mm OD, 3300 mm Length

LINE - hydraulic

1шт.

12

700707573

FLEXIBLE HOSE

LINE - hydraulic

1шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

15

700148853

SUPPORT

- hose

1шт.

16

CAS755777

CLAMP

- hose

2шт.

17

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees

1шт.

18

7021728

STRAP

TIE - cable

2шт.

19

700717344

HOSE

- hydraulic

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., Short Str Thd (Incl. item 27)

1шт.

21

122179A1

COUPLING, BREAK AWAY

COUPLER - quick

1шт.

22

700716552

PIPE

NIPPLE - quick coupler

1шт.

23

700716553

CROSSMEMBER

COUPLER - quick

1шт.

24

700717337

HOSE

- hydraulic (Includes item 28)

1шт.

25

700717332

HOSE

- hydraulic (Includes item 28)

1шт.

26

700717324

SLEEVE

- nylon

1шт.

27

738484

O-RING

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
