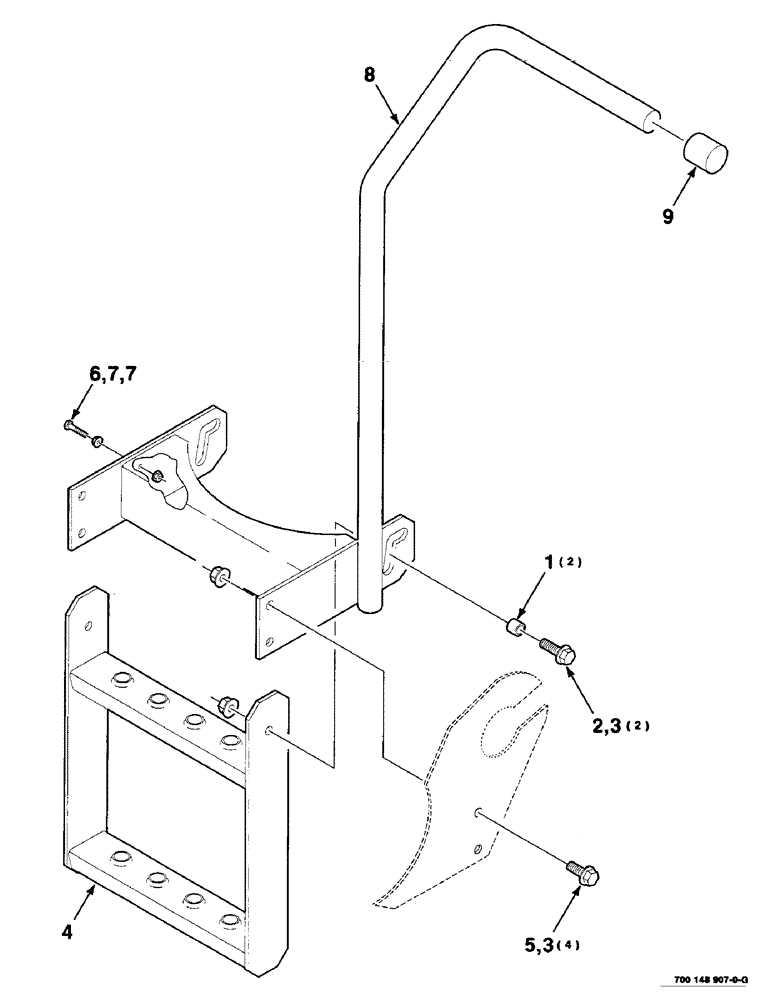

Запчасти Case IH 425 (7-30) - HANDRAIL AND STEP ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

6813398

BUSHING

SPACER

2шт.

2

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

4

700148912

STEP

WA

1шт.

5

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

8

700148907

RAIL ASSY.

HANDRAIL WA

1шт.

9

700713521

COVER

1шт.

6

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
