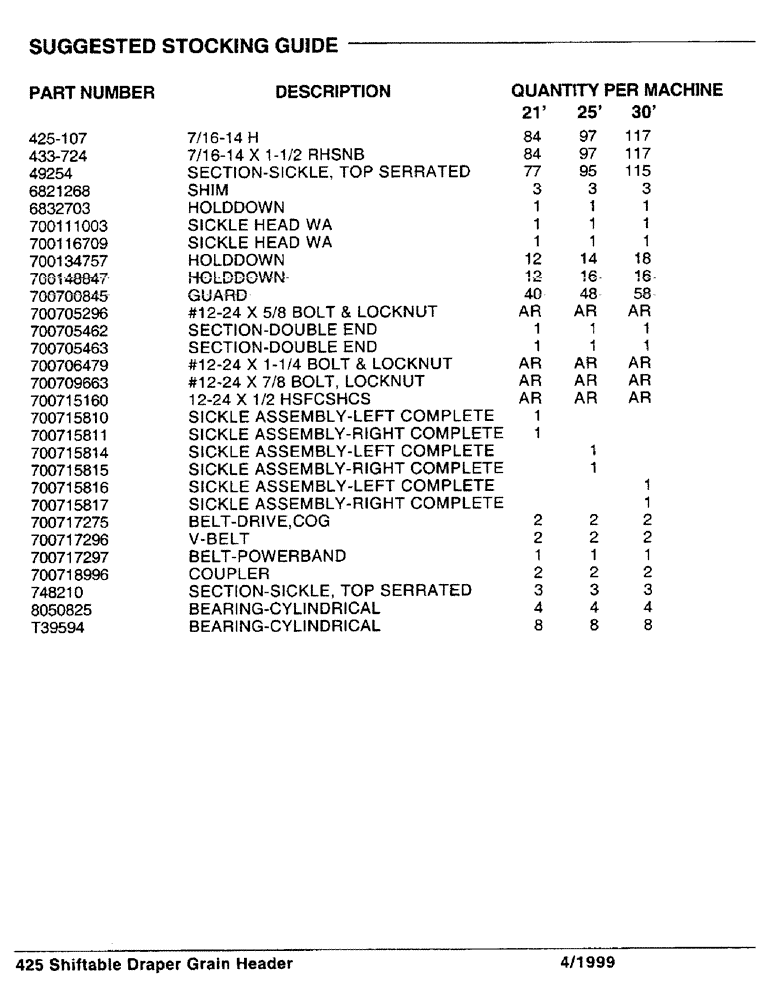

Запчасти Case IH 425 (00-0A) - SUGGESTED STOCKING GUIDE (05) - SERVICE & MAINTENANCE

425-107

425-107

NUT,7/16"-14, G5

For 21' Machines

84шт.

425-107

425-107

NUT,7/16"-14, G5

For 25' Machines

97шт.

425-107

425-107

NUT,7/16"-14, G5

For 30' Machines

117шт.

433-724

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2, RHSNB, for 21' Machines

84шт.

433-724

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2, RHSNB, for 25' Machines

97шт.

433-724

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2, RHSNB, for 30' Machines

117шт.

49254

49254

KNIFE SECTION

SECTION, KNIFE Sickle, Top Serrated, for 21' Machines

77шт.

49254

49254

KNIFE SECTION

SECTION, KNIFE Sickle, Top Serrated, for 25' Machines

95шт.

49254

NLS

NO LONGER SERVICED

SECTION, KNIFE Sickle, Top Serrated, for 30' Machines

115шт.

6821268

6821268

SHIM

3шт.

700111003

700111003

KNIFE HEAD

Sickle

1шт.

700116709

700116709

KNIFE HEAD

Sickle

1шт.

700134757

700134757

PLATE

Holddown, for 21' Machines

12шт.

700134757

700134757

PLATE

Holddown, for 25' Machines

14шт.

700134757

700134757

PLATE

Holddown, for 30' Machines

18шт.

700705296

700705296

BOLT AND NUT

#12-24 X 5/8 Bolt & Lock Nut

1шт.

700705462

700705462

KNIFE SECTION

Double-End

1шт.

700705463

700705463

KNIFE SECTION

Double-End

1шт.

700706479

700706479

BOLT AND NUT

#12-24 X 1-1/4 Bolt & Lock Nut

1шт.

700709663

700709663

BOLT AND NUT

#12-24 X 7/8 & Lock Nut

1шт.

700715160

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 X 1/2 HSFCSHCS

1шт.

700715810

700715810

KNIFE ASSY

Sickle, Left Complete, for 21' Machines

1шт.

700715811

700715811

KNIFE

Sickle, Right Complete, for 21' Machines

1шт.

700715814

700715814

KNIFE

Sickle, Left Complete, for 25' Machines

1шт.

700715815

700715815

KNIFE ASSY

Sickle, Right Complete, for 25' Machines

1шт.

700715816

700715816

KNIFE ASSY

Sickle, Left Complete, for 30' Machines

1шт.

700715817

700715817

KNIFE ASSY

Sickle, Right Complete, for 30' Machines

1шт.

700717275

700717275

BELT

Drive, Cog

2шт.

700717296

700717296

BELT

V

2шт.

700717297

700717297

SET OF 2 BELTS

Powerband

1шт.

700718996

700718996

COUPLING

2шт.

748210

51200281

KNIFE SECTION

SECTION, KNIFE Sickle, Top-Serrated

3шт.

8050825

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

Cylindrical

4шт.

t39594

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

Cylindrical

8шт.
