(58.110.04[01]) - LH KNIFE ASSY, 45FT SOYBEAN, ASN YHH051300

Запчасти Case IH 3162 (58.110.04[01]) - LH KNIFE ASSY, 45FT SOYBEAN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

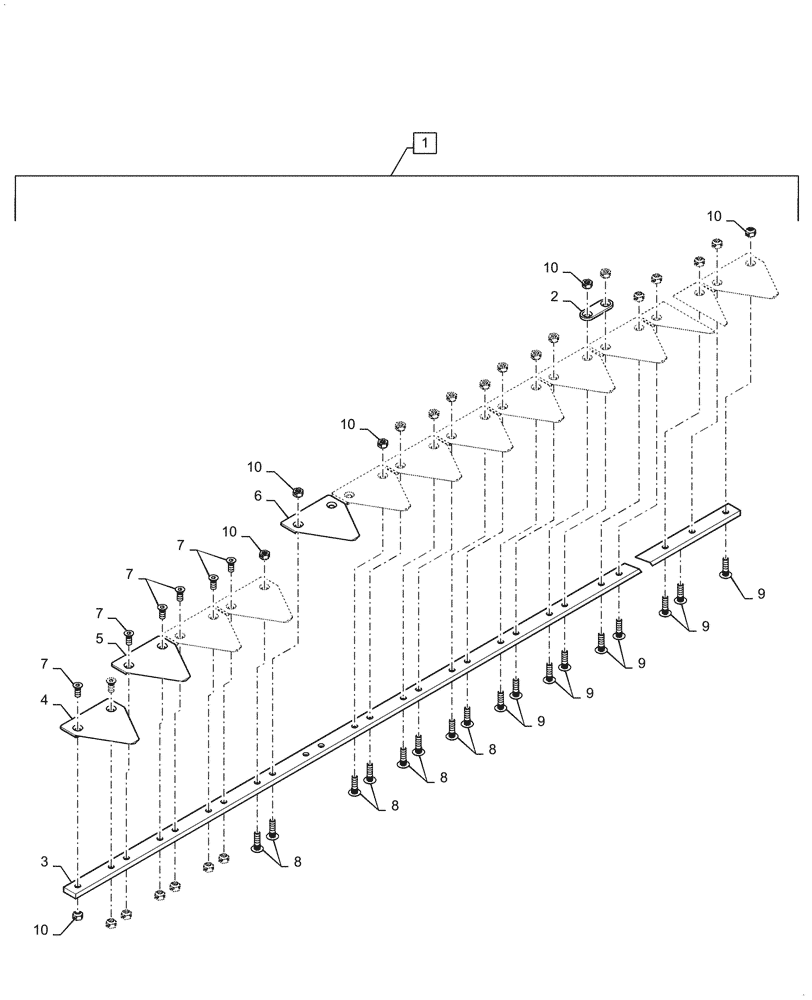

Схема запчастей Case IH 3162 - (58.110.04[01]) - LH KNIFE ASSY, 45FT SOYBEAN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS
7
10
8
3
7
8
10
9
5
2
9
9
7
8
1
4
10
10
7
9
9
6
8
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47997896

KNIFE ASSY

LH 45FT Soybean, Incl 2 - 10

1шт.

2

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

16шт.

3

NSS

NOT SOLD SEPARAT

LH Knife Back

1шт.

4

48036648

KNIFE SECTION

OS, BT CSB AT

1шт.

5

48036640

KNIFE SECTION

OS, BT CST AT

3шт.

6

48036644

KNIFE SECTION

OS, BT, STD AT

88шт.

7

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

7шт.

8

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

9

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

165шт.

10

84429102

LOCK NUT

182шт.
