(58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 35 FOOT HEADER

Запчасти Case IH 3162 (58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 35 FOOT HEADER (58) - ATTACHMENTS/HEADERS

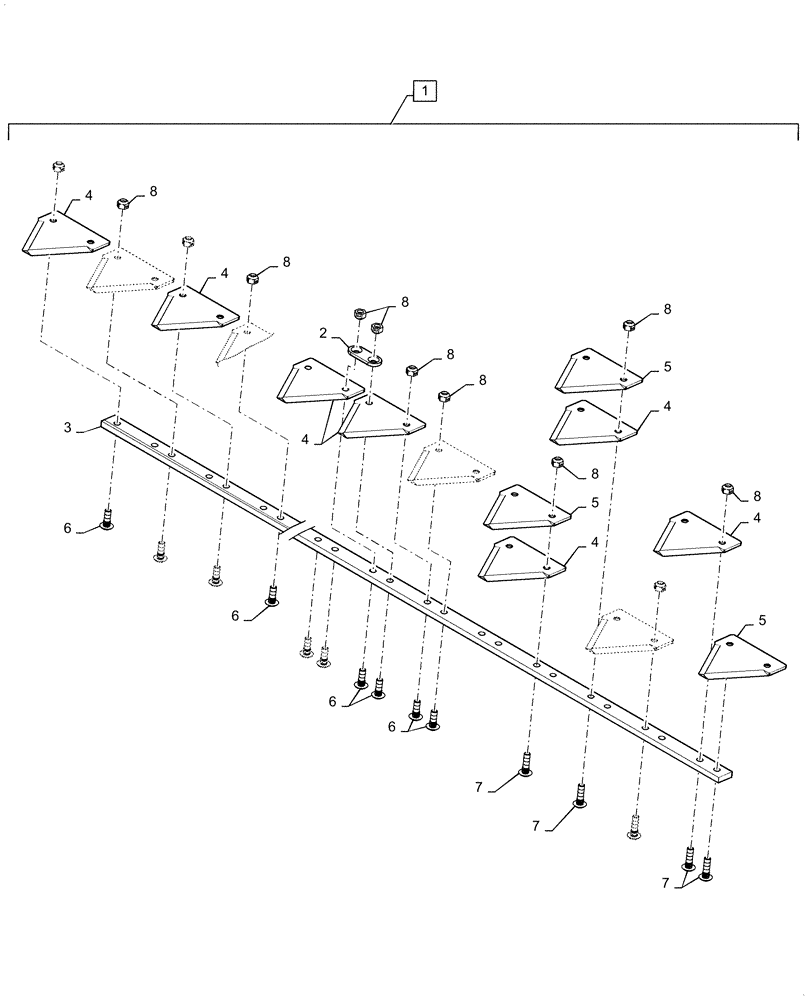

Схема запчастей Case IH 3162 - (58.110.02) - KNIFE ASSY, RH, 3-IN COARSE, 35 FOOT HEADER (58) - ATTACHMENTS/HEADERS
5
5
8
4
5
7
4
8
8
8
7
6
7
4
3
1
6
4
8
4
8
6
6
2
8
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84131147

KNIFE ASSY

Soybean, Center Knife Drive, Incl 2 - 8

1шт.

2

321848A1

KNIFE CLIP

Reinforcing - 3 in Knives

12шт.

3

NSS

NOT SOLD SEPARAT

RH, Knife Back

1шт.

4

87728905

KNIFE SECTION

Section, OS

68шт.

5

87470186

KNIFE SECTION

OS

3шт.

6

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

127шт.

7

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

8шт.

8

84429102

LOCK NUT

135шт.
